Agilent MOI for DisplayPort Cable & Connector Compliance Tests
23
3. Press Channel Next key to select Channel 2.
4. Press Channel Max key to enlarge Channel 2.
5. Press Trigger > Single for Frequency Domain measurement.
5.5.6.3. Data Analysis
Read Pass/Fail sign on Trace 4 (item 1 in Figure 5-5).

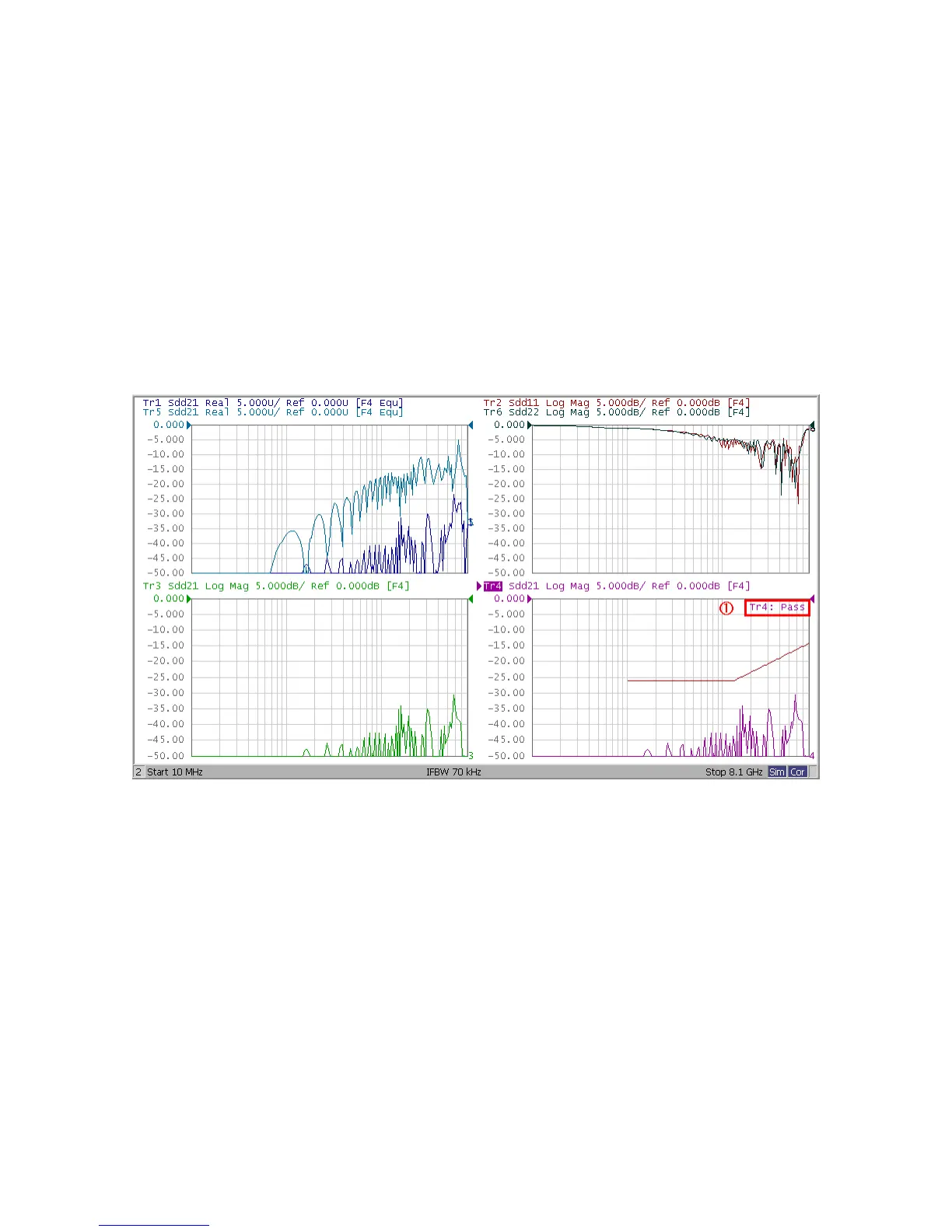

Figure 5-5: Near End Noise Measurement Example.
5.5.7. Far End Noise (FEN)
The Power Sum Equal Level Far-End Noise (PSELFEN) represents the difference between
cable insertion loss and the total power sum far end noise from aggressor cable lanes. Prior
to measuring the far-end noise between the victim and aggressor channels, the insertion loss
of the victim channel must be measured on Trace 3, and saved to the trace memory.
