Agilent MOI for DisplayPort Cable & Connector Compliance Tests
24

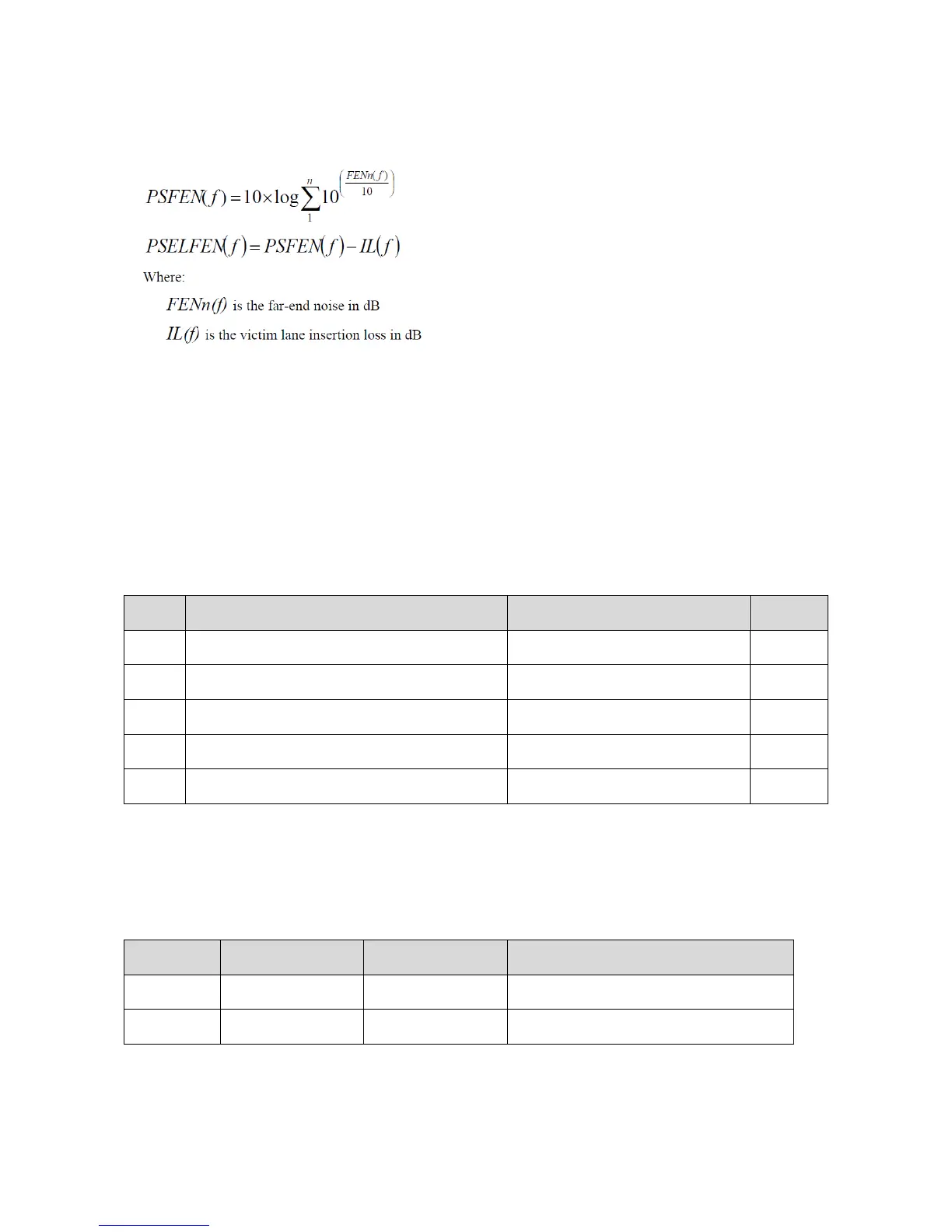

Since the number of aggressor channels depends on the victim channel, use an appropriate
trace for each test according to the Table 5-8. For test number 2 to 4 (dual aggressor test),
the crosstalk measurements need to be performed separately on each combination of
victim-aggressor, and combine the results to calculate Far End Noise. For instance, to
obtain Far End Noise for test 3, measure Sdd21 between Main Link(0) and Main Link(1)
crosstalk, then measure Sdd21 between Main Link(2) and Main Link(1).
Table 5-8 Victims and Aggressors
