Agilent Technologies E5071C Compliance Tests

Agilent MOI for DisplayPort Cable & Connector Compliance Tests
14
ENA Port Number
Port1
Port2
Port3
Port4
Fixture Pin Number
A ML0+
A ML0-
B ML0+
B ML0-
A: Source Side, B: Sink Side

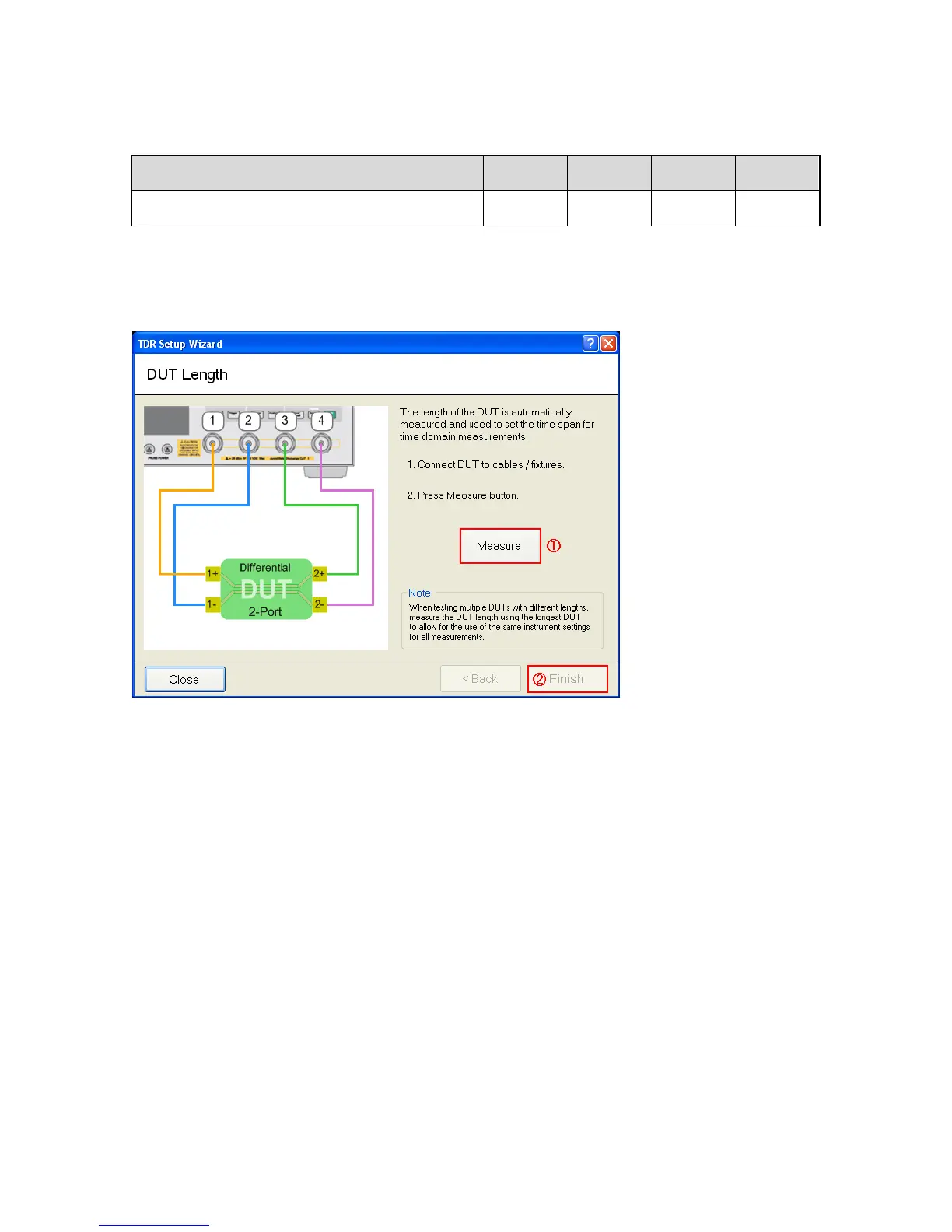

3. Click Measure (item 1).
4. Click Finish (item 2).
5.4.2. Frequency Domain Calibration
5.4.2.1. Define Cal kit
The cal kit definition file shall be provided by the fixture supplier or created according to
6.1 Defining a calibration Kit.
1. Press Cal key to select channel 2.
2. Click Cal Kit, then select a User.
3. Click Modify Cal Kit > Import Cal Kit… to open the dialog box.
4. Specify a folder, enter a file name, and click Open.
