Agilent MOI for DisplayPort Cable & Connector Compliance Tests
32
6.2.2. Bulk Cable and Connector Impedance Measurements
(Normative)
6.2.2.1. Measurement Setup
1. Click Stop Single.

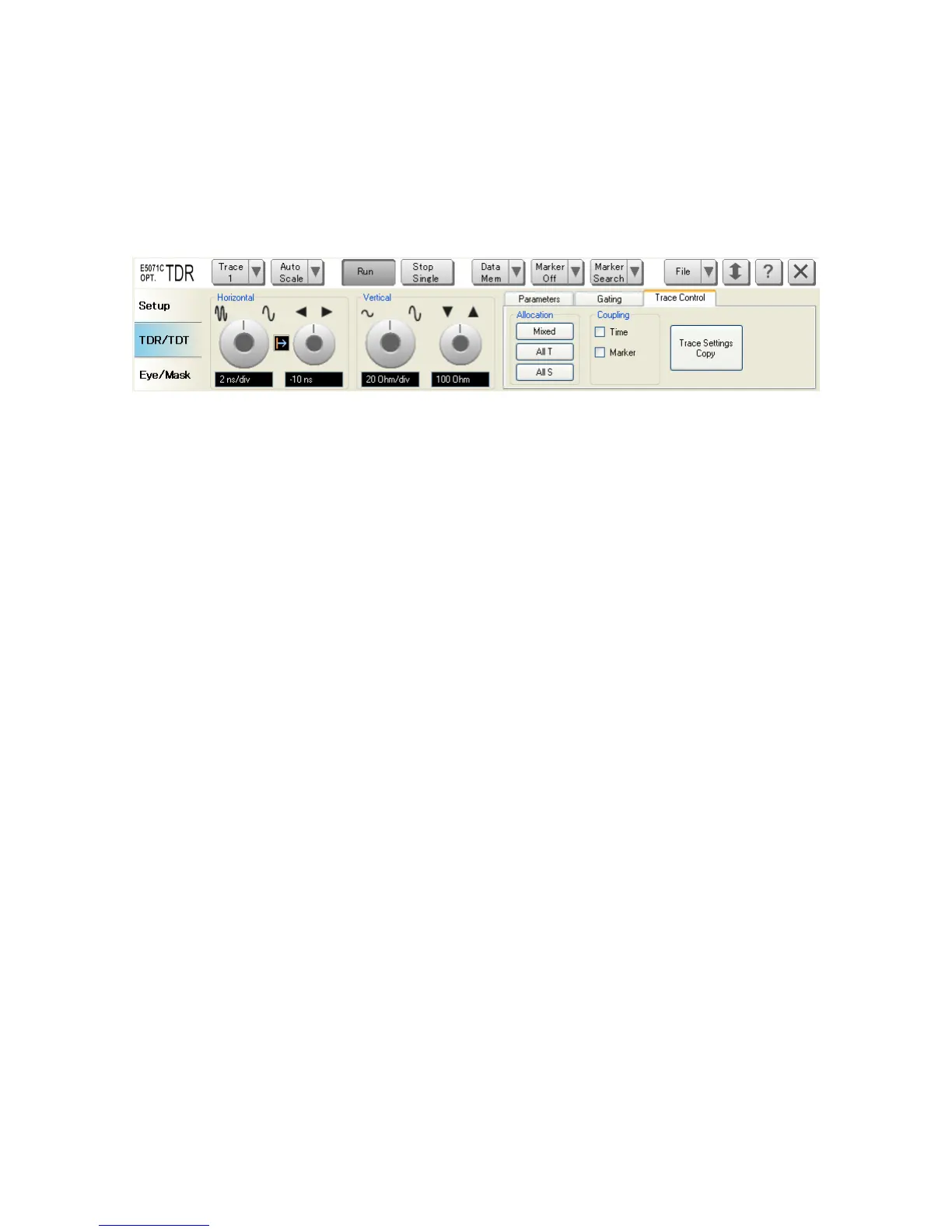

2. Open TDR/TDT tab.
3. Click Trace Control tab.
4. Clear Time and Marker check box under Coupling.
5. Open Parameters tab.
6. Select Trace 1.
7. Select Rise Time to 20-80 % and input value to 130 psec.
8. Click the box below the left knob under Horizontal. Then Entry dialog box appear.
9. Input horizontal scale to 150 ps/div.
10. Click the box below the right knob under Horizontal. Then Entry dialog box appear.
11. Input horizontal position to -360 ps.
12. Click the box below the left knob under Vertical. Then Entry dialog box appear.
13. Input vertical scale to 5 ohm/div.
14. Click the box below the right knob under Vertical. Then Entry dialog box appear.
15. Input vertical position to 75 ohm.
16. Open Trace Control tab.
17. Click Trace Settings Copy.
18. Trace Settings Copy dialog box appears.
19. Select the Trace 1 in the From list.
20. Select the Trace 5 in the To list.
21. Click Copy.
