Agilent MOI for DisplayPort Cable & Connector Compliance Tests
7
5.3. Connection Configuration
This Section describes the screen configuration of the E5071C-TDR and the cable
connection.

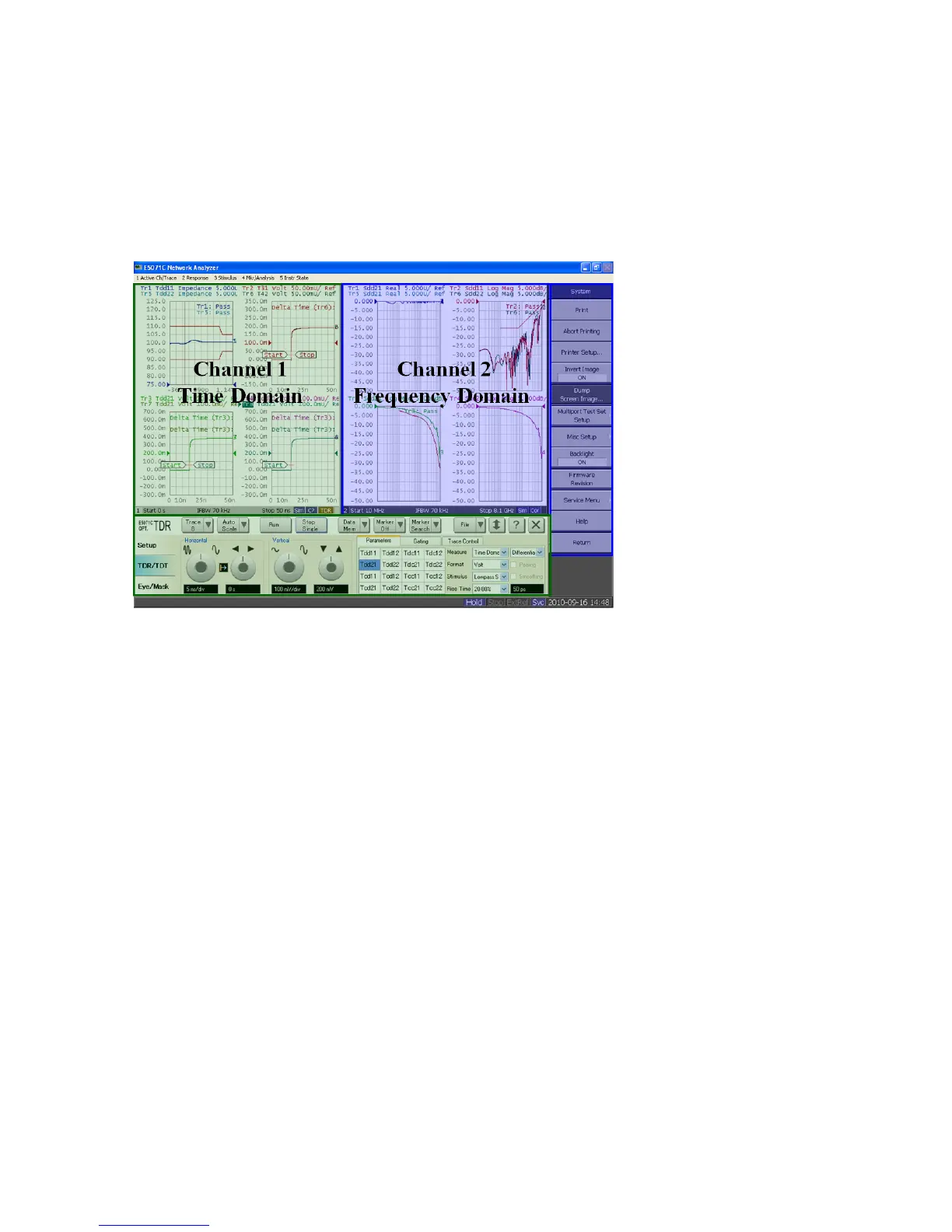

Figure 5-1: Measurement screen description.
Channel 1 for time domain measurement is controlled by the TDR user interface at the
bottom of the screen and Channel 2 for frequency domain measurement is controlled by the
soft-key on the right-side of the screen and hard-key on the instrument front panel.
