Agilent Technologies E5071C Compliance Tests

Agilent MOI for DisplayPort Cable & Connector Compliance Tests
33
22. Click Close.
23. Select Trace 5.
24. Open Parameters tab.
25. Click Tdd22.
6.2.3. Intra-Pair Skew Measurement (Normative)
6.2.3.1. Measurement Setup

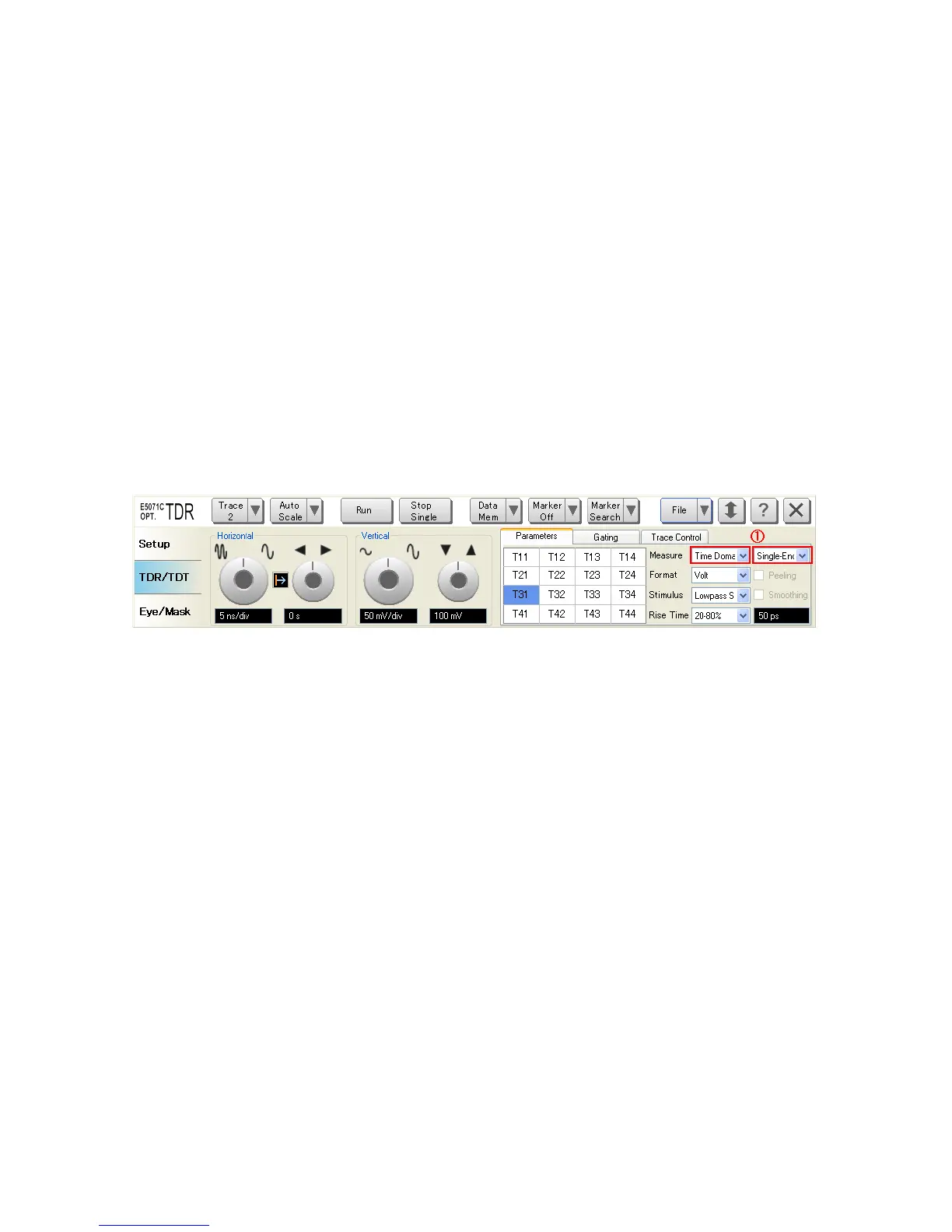

1. Select Trace 2.
2. Open Parameters tab.
3. Select Measure to Time Domain and Single-Ended (item 1).
4. Select Format to Volt.
5. Click T31.
6. Select Rise Time to 10-90 % and input value to 50 psec.
7. Click the box below the left knob under Horizontal. Then Entry dialog box appear.
8. Input horizontal scale to 5 ns/div.
9. Click the box below the right knob under Horizontal. Then Entry dialog box appear.
10. Input horizontal position to 0 ns.
11. Click the box below the left knob under Vertical. Then Entry dialog box appear.
12. Input vertical scale to 50 mV/div.
13. Click the box below the right knob under Vertical. Then Entry dialog box appear.
14. Input vertical position to 100 mV.
15. Open Trace Control tab.
16. Click Trace Settings Copy.
17. Trace Settings Copy dialog box appears.
