Chapter 3 53
Making Fault Location Measurements
Basic Measurement Procedures
Connect the Cable Under Test
The basic equipment setup for fault location measurements is illustrated in Figure
3-5.

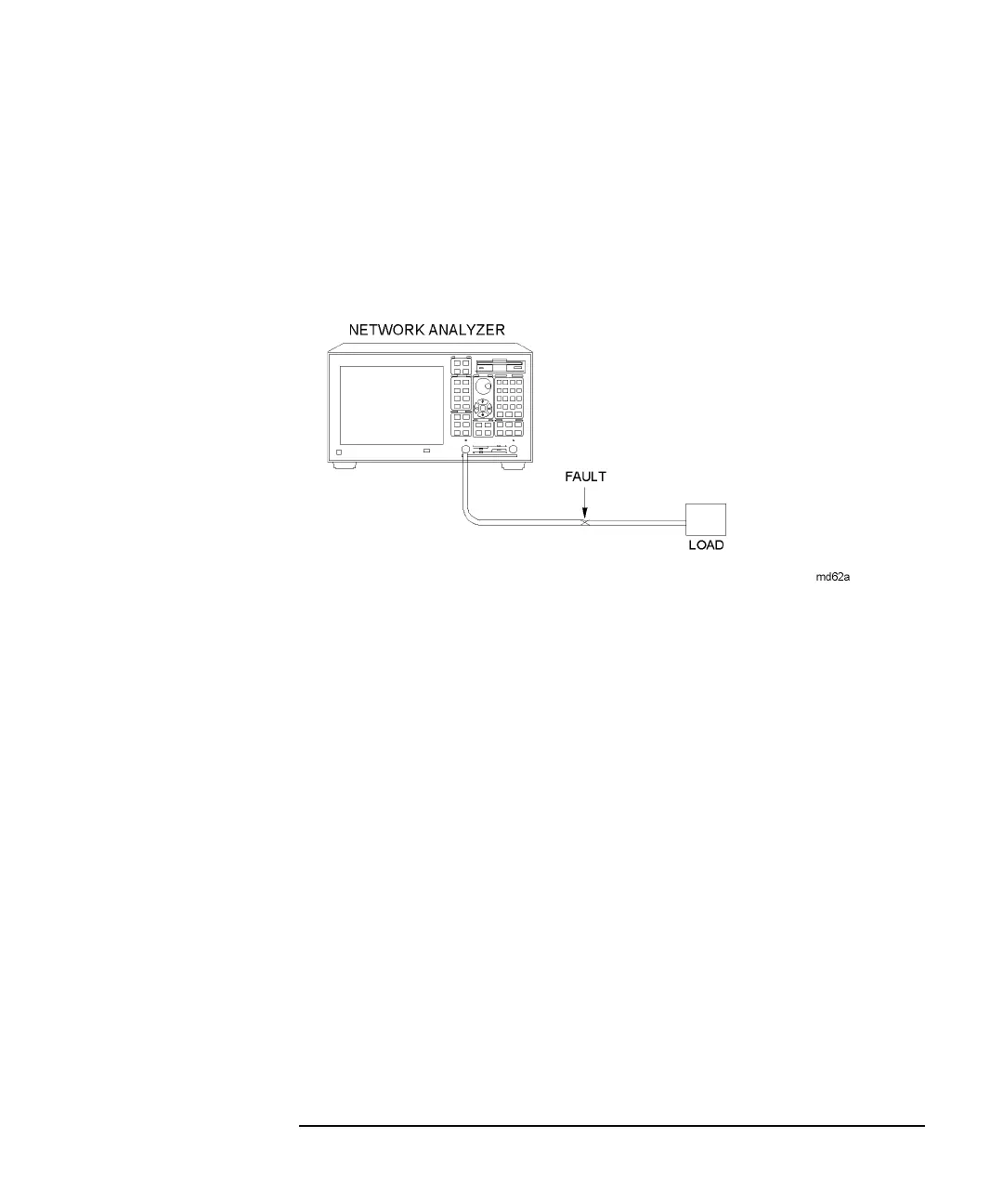

Figure 3-5 Basic Fault Location Measurement Setup
