Fault Location Distance Range and Resolution

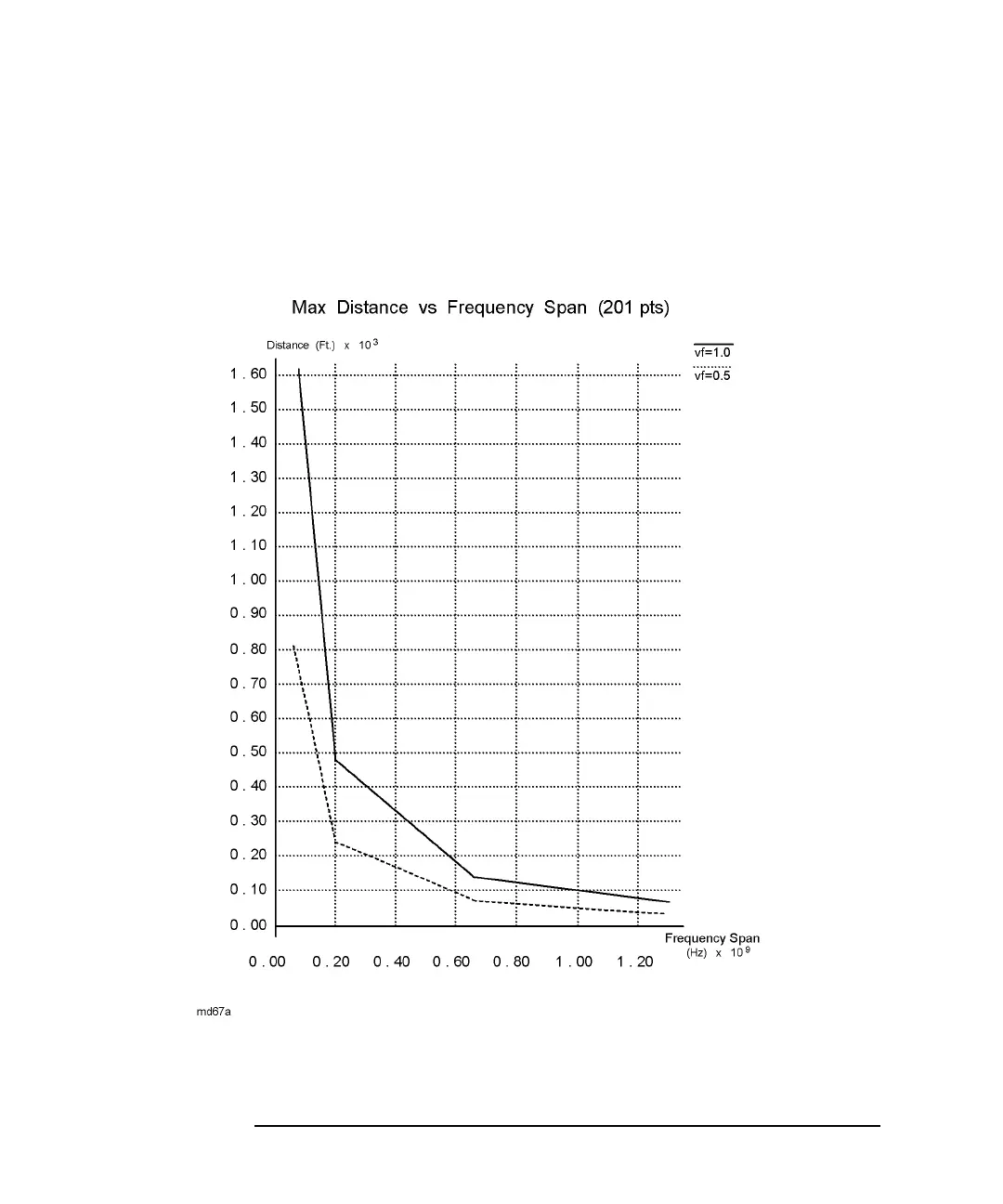

The following two graphs are plots of maximum distance versus frequency span and
resolution versus frequency span using data from
Table 7-10. Please note that data is
plotted only for velocity factors of
0.5 and 1.0.
Figure 7-3
