Agilent Technologies Infiniium 80000 Series User Manual

Chapter 6: Replacing Assemblies
To remove and replace the AutoProbe assembly
108
d Disconnect the mylar flex cable from the AutoProbe board.
See See “To disconnect and connect Mylar flex cables” on page 106.

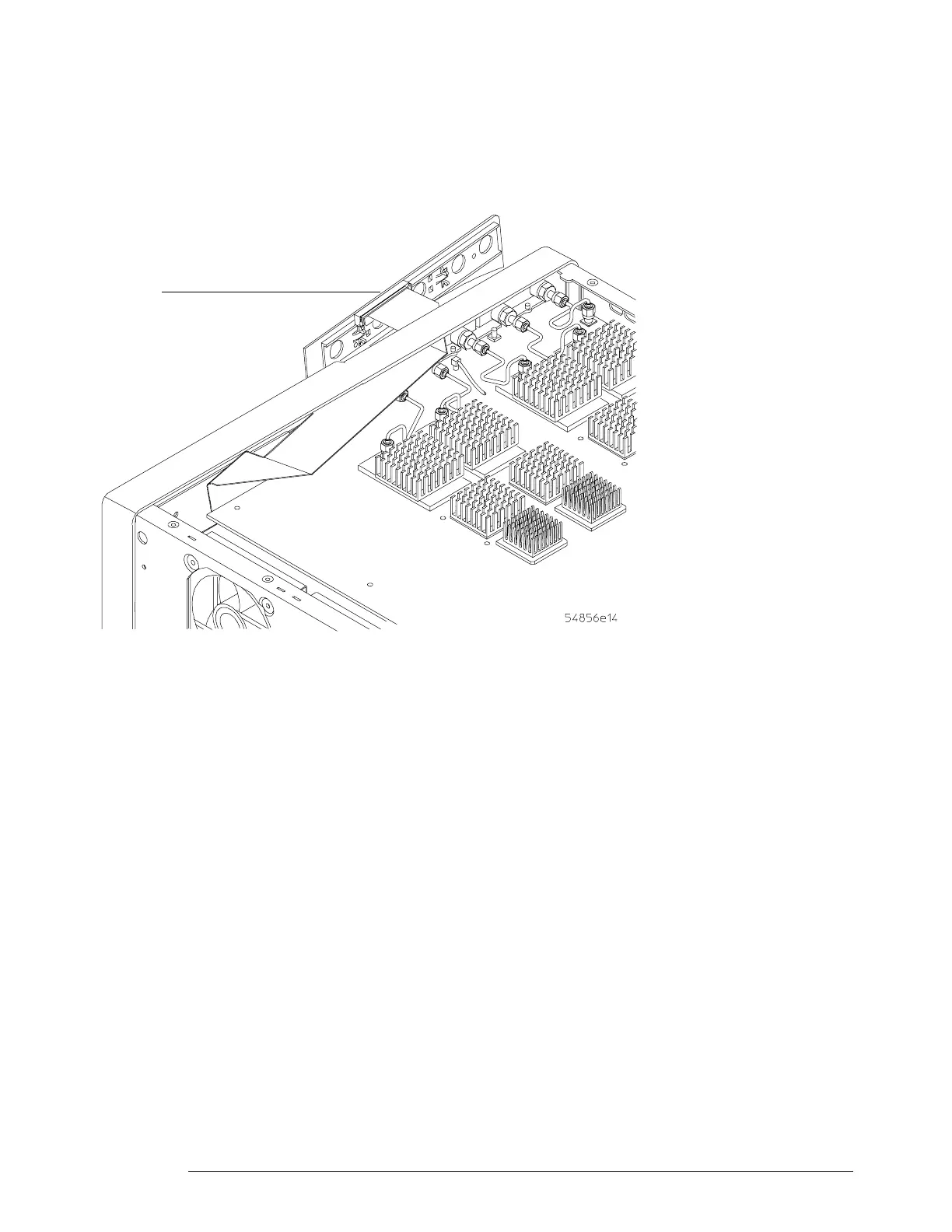

Figure 6-6
Pushing out the AutoProbe faceplate
3 To replace the AutoProbe assembly, reverse the above procedure.
Disconnect mylar
flex cable here
