Chapter 2: Setting Up the Oscilloscope
To connect SMA Cables
24
To connect SMA Cables
You can connect an SMA cable to the Infiniium oscilloscope using precision 3.5 mm to BNC
compatible adapters.
1
Attach the two precision 3.5 mm to BNC compatible adapters to the ends of an SMA
cable.
2 Push the precision 3.5 mm to BNC compatible adapters onto the oscilloscope BNC
connectors.
3 Tighten the thumbscrews until they are snug.

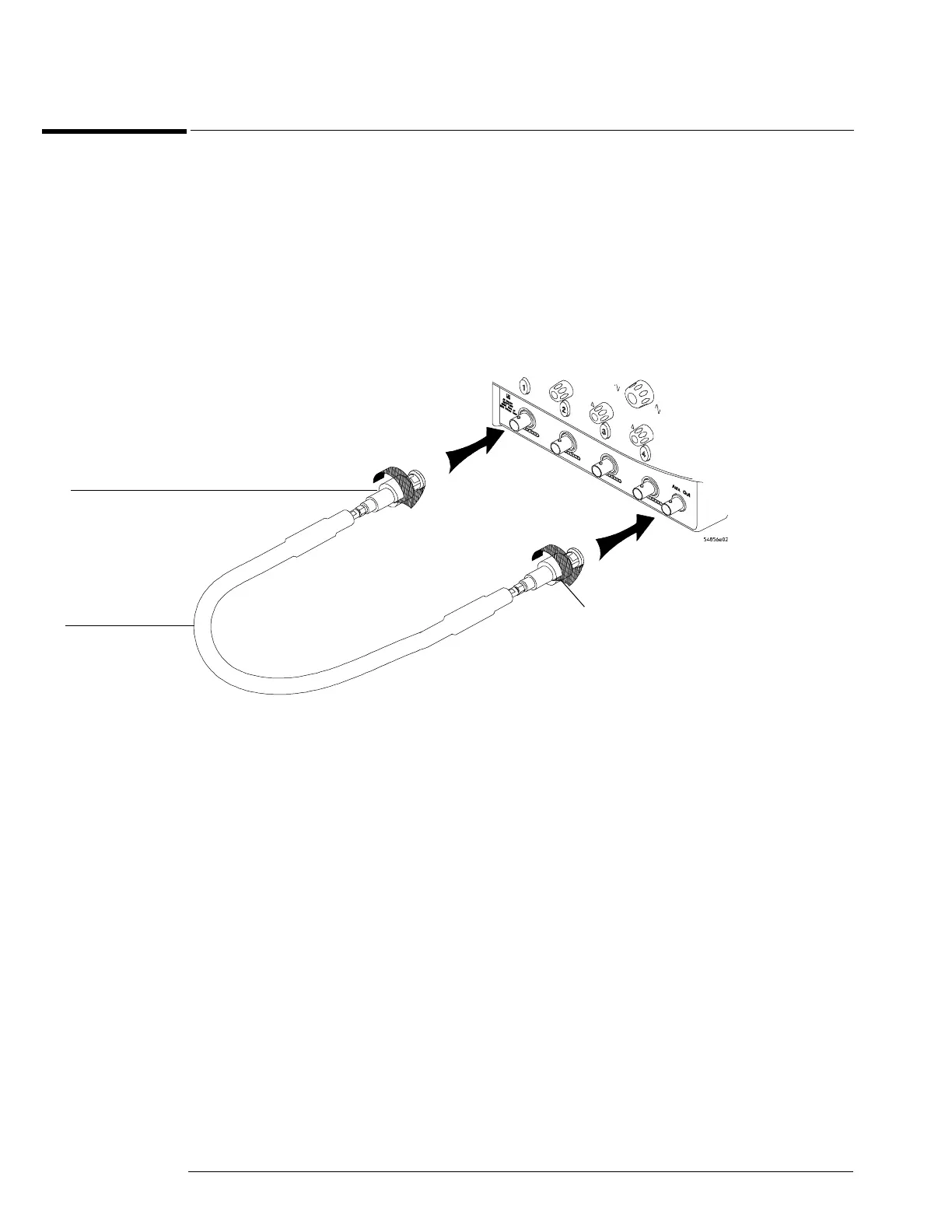

Figure 2-6
Connecting SMA to BNC adapters
SMA cable
Thumb screw
Precision 3.5 mm to
BNC compatible
adapter
