Agilent Technologies Infiniium 80000 Series User Manual

Chapter 2: Setting Up the Oscilloscope
To connect optional InfiniiMax oscilloscope probes
25
To connect optional InfiniiMax oscilloscope probes
1 Attach the probe connector to the desired oscilloscope channel or trigger input. Push
it straight on until it latches into place.

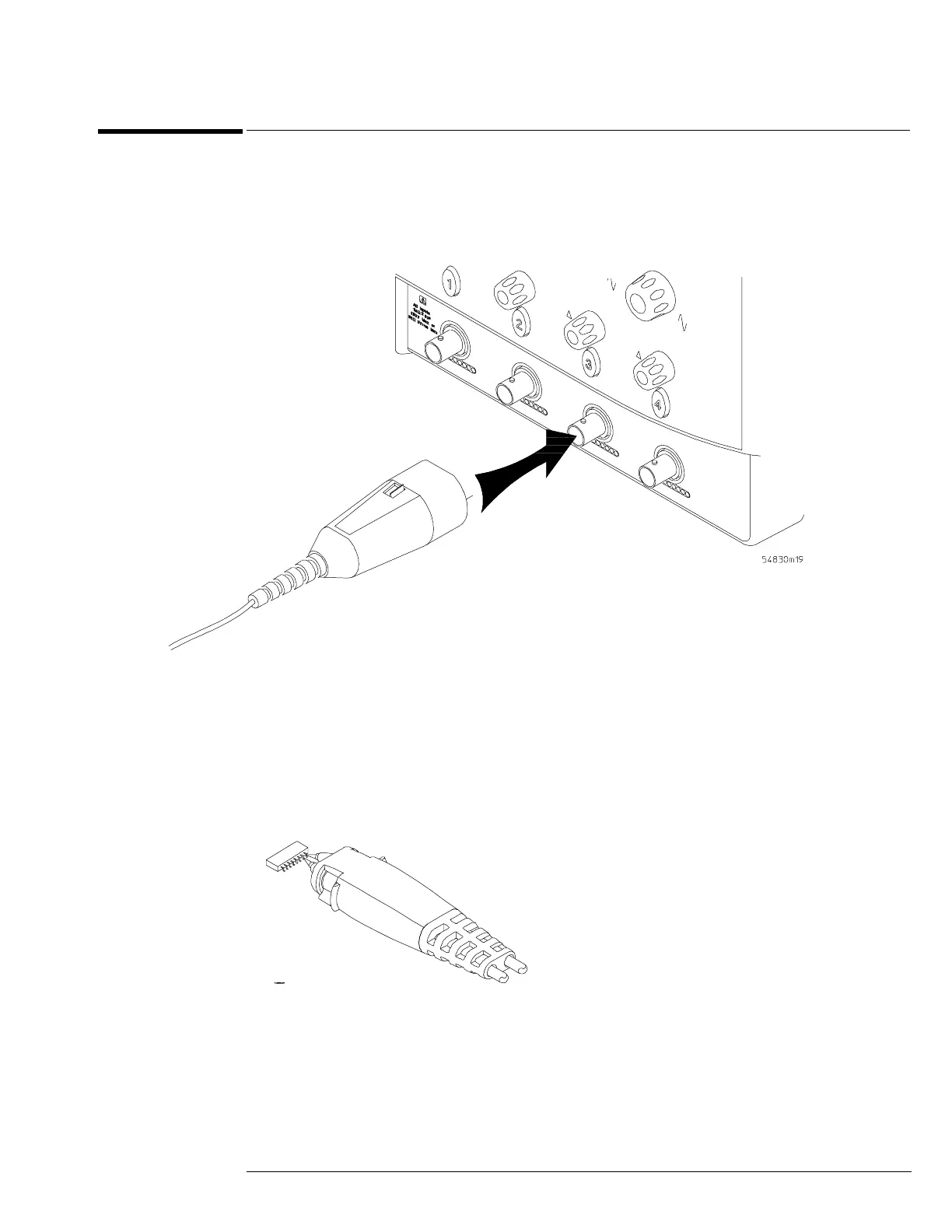

Figure 2-7
Attaching the Probe Connector
2 Connect the probe to the circuit of interest using the browser or other probing
accessories.
Figure 2-8
Probing the Circuit
