Chapter 6: Replacing Assemblies
To remove and replace the CD-ROM drive
129
6
Using a Torx T6 driver, remove the three screws securing the CD-ROM to the support
bracket.
When re-assembling, torque the three Torx T6 screws to 1.5 in-lb.
7
Using a Torx T10 driver, remove the two screws securing the CD-ROM adapter board
to the support bracket.
When re-assembling, torque the two Torx T6 screws to 1.5 in-lb.

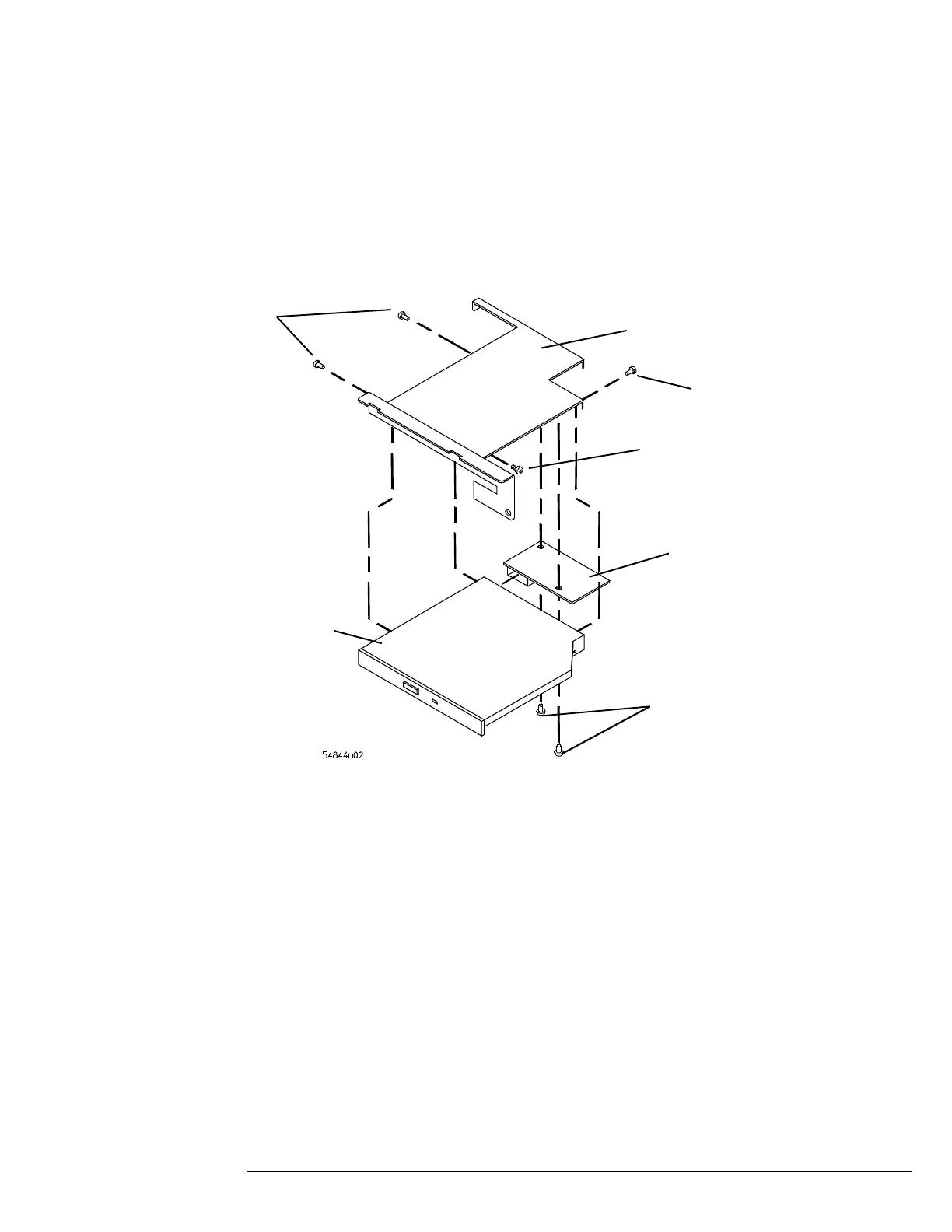

Figure 6-27
Removing the support bracket and adapter board
8 To replace the CD-ROM drive, reverse the above procedure.
Torx
10
Torx
T6
Torx
T6
Support
bracket
Adapter
board
CD-ROM
drive
Torx
T6
