Attaching an Undercradle
1 If the metal plate (on the bottom of the Advisor) is covering
the opening for the Undercradle to attach to, remove the two
screws from the metal plate. Use the wrench provided in the
miscellaneous parts kit (or a T10 Torx screwdriver) to
remove the screws.
2 Slide the metal plate over to the next set of drilled holes in
the metal plate and re-attach it (with the same screws you
removed in the previous step). This will leave an opening into
which you can install your connector board. Ensure that the
screws are flush with the metal plate.
Turn off the power and unplug the Advisor before attaching or removing
undercradles.

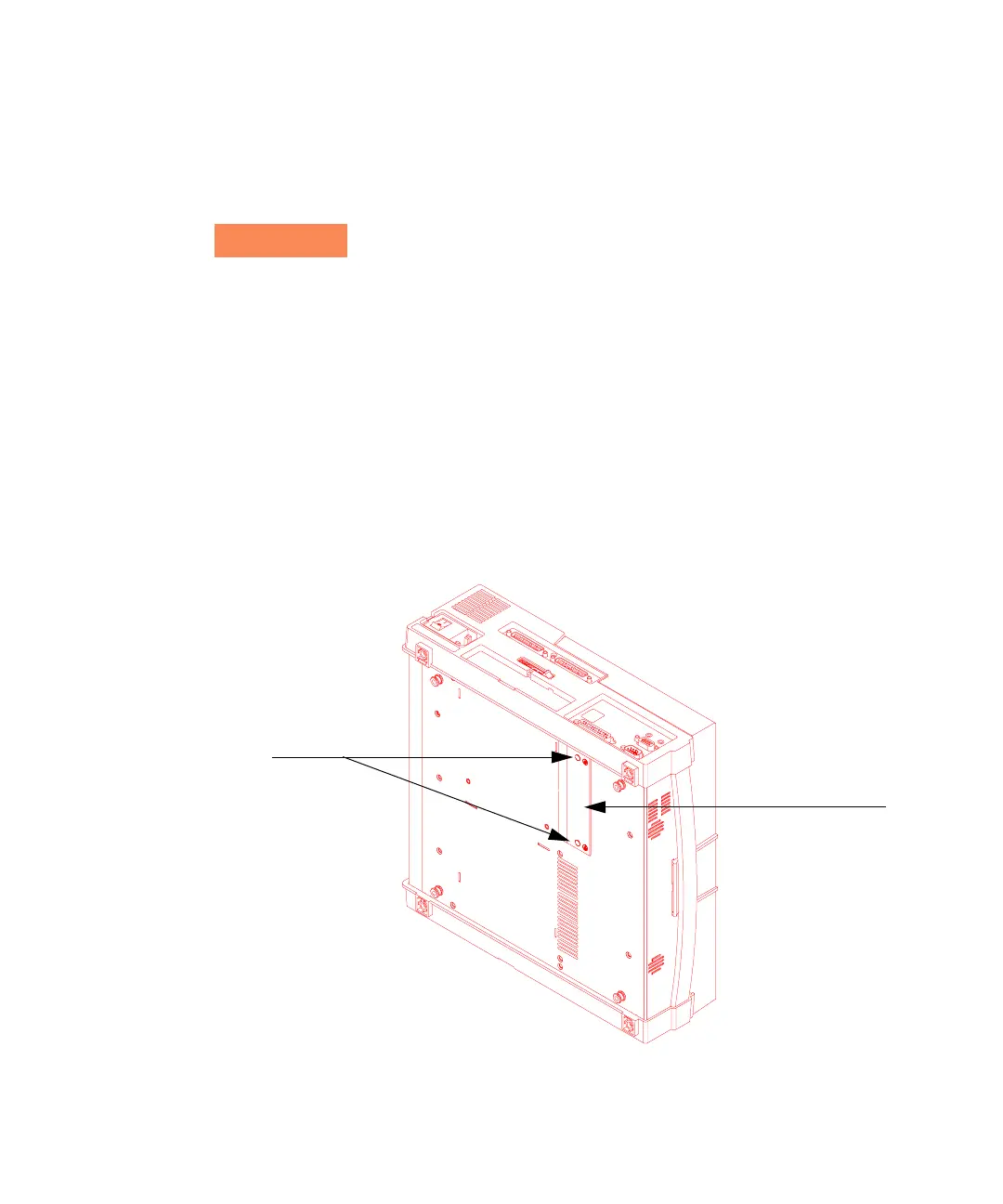

Metal Plate
Screws
