Agilent Technologies J2300D User Manual

Breakout Box, LEDs, and Connectors B
Advisor Mainframe Features System Guide 73

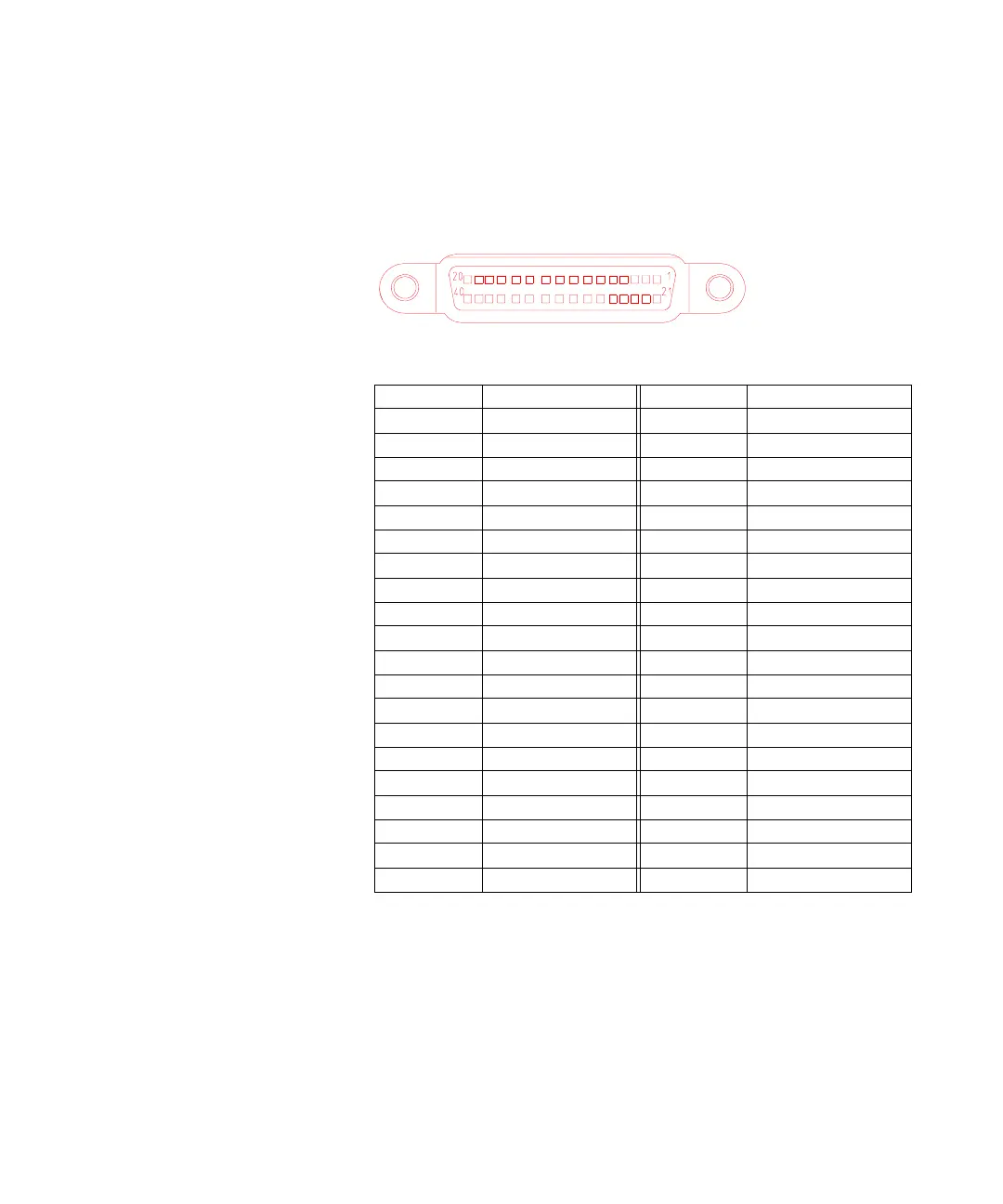

MII — 100Base-T
Pin Circuit Name Pin Circuit Name
1 +5 V 21 +5 V
2 MDIO 22 COMMON
3 MDC 23 COMMON
4 RXD<3> 24 COMMON
5 RXD<2> 25 COMMON
6 RXD<1> 26 COMMON
7 RXD<0> 27 COMMON
8 RX_DV 28 COMMON
9 RX_CLK 29 COMMON
10 RX_ER 30 COMMON
11 TX_ER 31 COMMON
12 TX_CLK 32 COMMON
13 TX_EN 33 COMMON
14 TXD<0> 34 COMMON
15 TXD<1> 35 COMMON
16 TXD<2> 36 COMMON
17 TXD<3> 37 COMMON
18 COL 38 COMMON
19 CRS 39 COMMON
20 +5 V 40 +5 V
