Specifications A
Advisor Mainframe Features System Guide 57
Refer to Chapter 1 for the matrix of interface modules and
undercradles that you can use with the J3446D/E.
Refer to Appendix B for connector pinouts.
A
B
C
C
D
To Hub/
Switch
On
To Node
On
100BASE-TX/10BASE-T
INSTALL/REMOVE
POSITION
LOCKED POSITION
(SEE MANUAL)
E
)URQW
5LJKW6LGHRI-'($GYLVRU

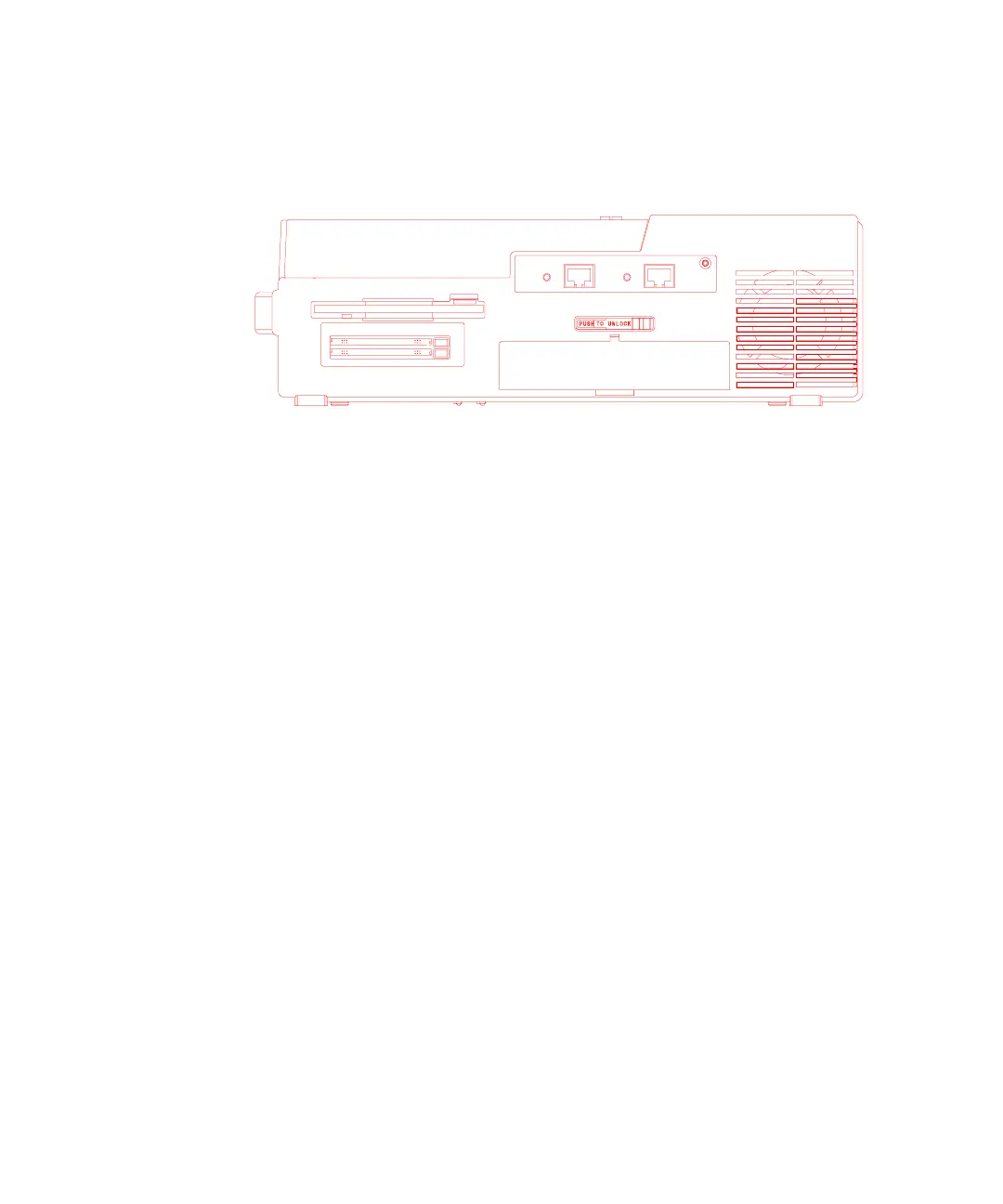

A 3 1/2 inch high density flexible disk drive
B PC Card Slot
C 100Base-TX/10Base-T Ethernet connectors
D Interface Module slot
E Module Release Latch for Interface Modules
