10 Specifications and Characteristics
230 Agilent N1913/1914A EPM Series Power Meters User’s Guide
For Agilent N8480 Series power sensors
Typical Settling time: 0 to 99% settled readings over the GPIB.
Auto filter, default resolution, 10 dB decreasing power step, normal and
x2 speed modes (refer to Figure 10-4).
Manual filter, 10 dB decreasing power step (refer to Table 10- 8).
Table 1 0 -8 N8480 Series Settling Time

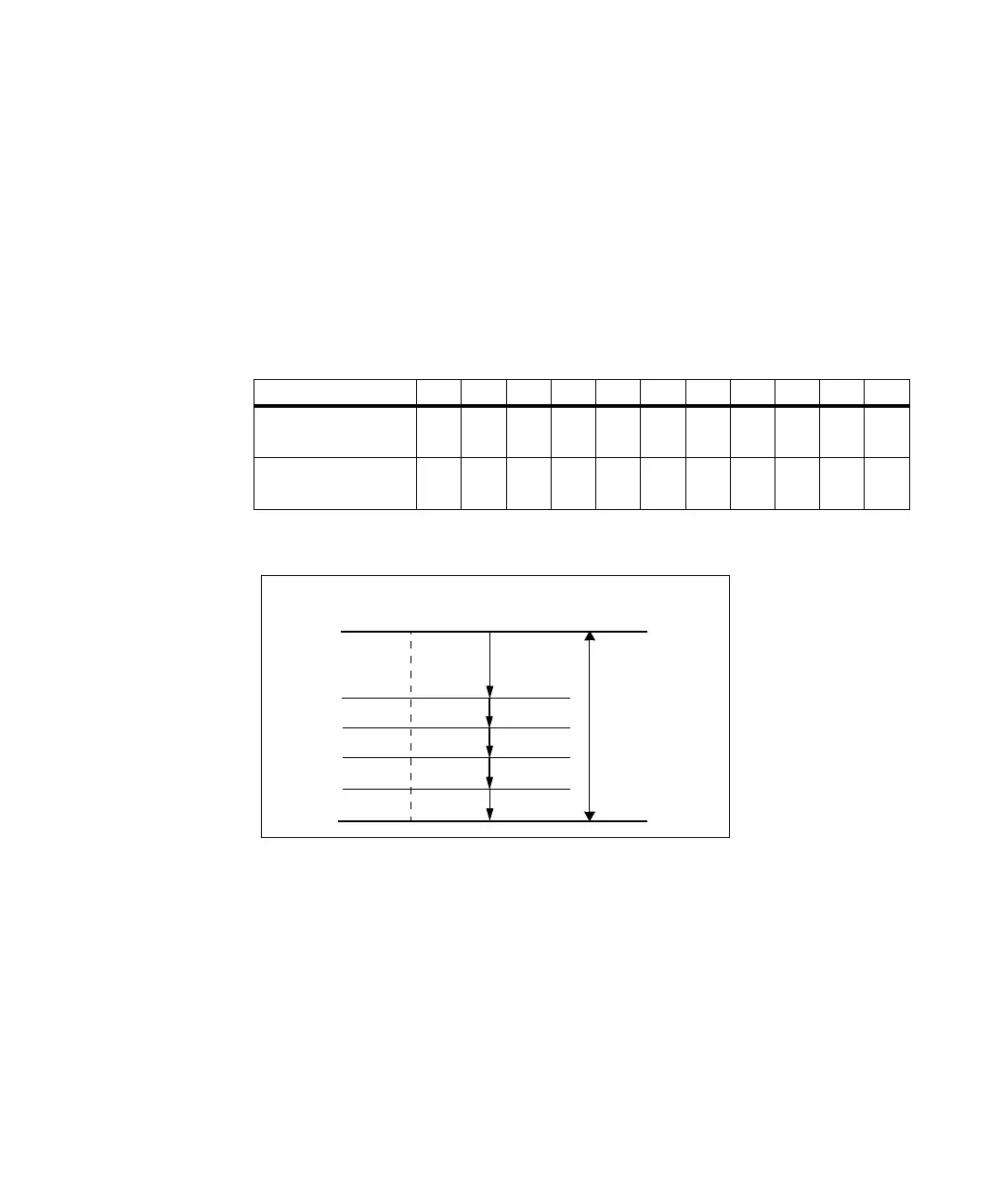

Figure 10-4 N8480 Series Settling Time with Auto-Filter
Number of Averages12481632641282565121024
Settling Time (s)
(Normal Mode)
0.15 0.2 0.3 0.5 1.1 1.9 3.4 6.6 13 27 57
Settling Time (s)
(X2 Mode)
0.15 0.18 0.22 0.35 0.55 1.1 1.9 3.5 6.9 14.5 33
+20 dB
+10 dB
150 ms
180 ms
400 ms
6.6 s
+10 dB
Normal
Mode
150 ms
200 ms
1 s
13.5 s
X2
Mode
Sensor
Dynamic
Range
Typical
Settling
Times
+10 dB
Max dBm
Min dBm
3.6 s
+10 dB
6.6 s
