When the front panel identification indicator is turned on, a blinking
“IDENTIFY” message is displayed on the screen of the front panel. See
Figure 1- 6. The “IDENTIFY” message will blink to identify the instrument
until you click Turn Off Front Panel Identification Indicator.
Figure 1-6 Message to identify the instrument
When the instrument is configured to LAN, the Lan Status on
screen will show the LAN error condition and status of
the LAN configuration connection. There are six types of Lan Status
messages that may occur. See Table 1- 1. See also Figure 1- 7 for the
example of Lan Status message.
Table 1 - 1 Type o f Lan Status message
Type of message Description
Lan: No Fault
Status: Initialized
• A valid IP address is successfully obtained using selected
LAN configuration and the network state is initialized.
Lan: No Fault
Status: Running
• A valid IP address is successfully obtained using selected
LAN configuration, while network is running.
Lan: Fault
Status: Initialization failed
• IP conflict occurs, or
• IP address failed to be obtained using selected LAN
configuration, or
• No LAN configuration is selected.
Lan: Fault
Status: Disconnected
• LAN cable is unplugged.
Lan: –
Status: Restarting
• Restart the network and try to obtain an IP address using
selected LAN configuration.

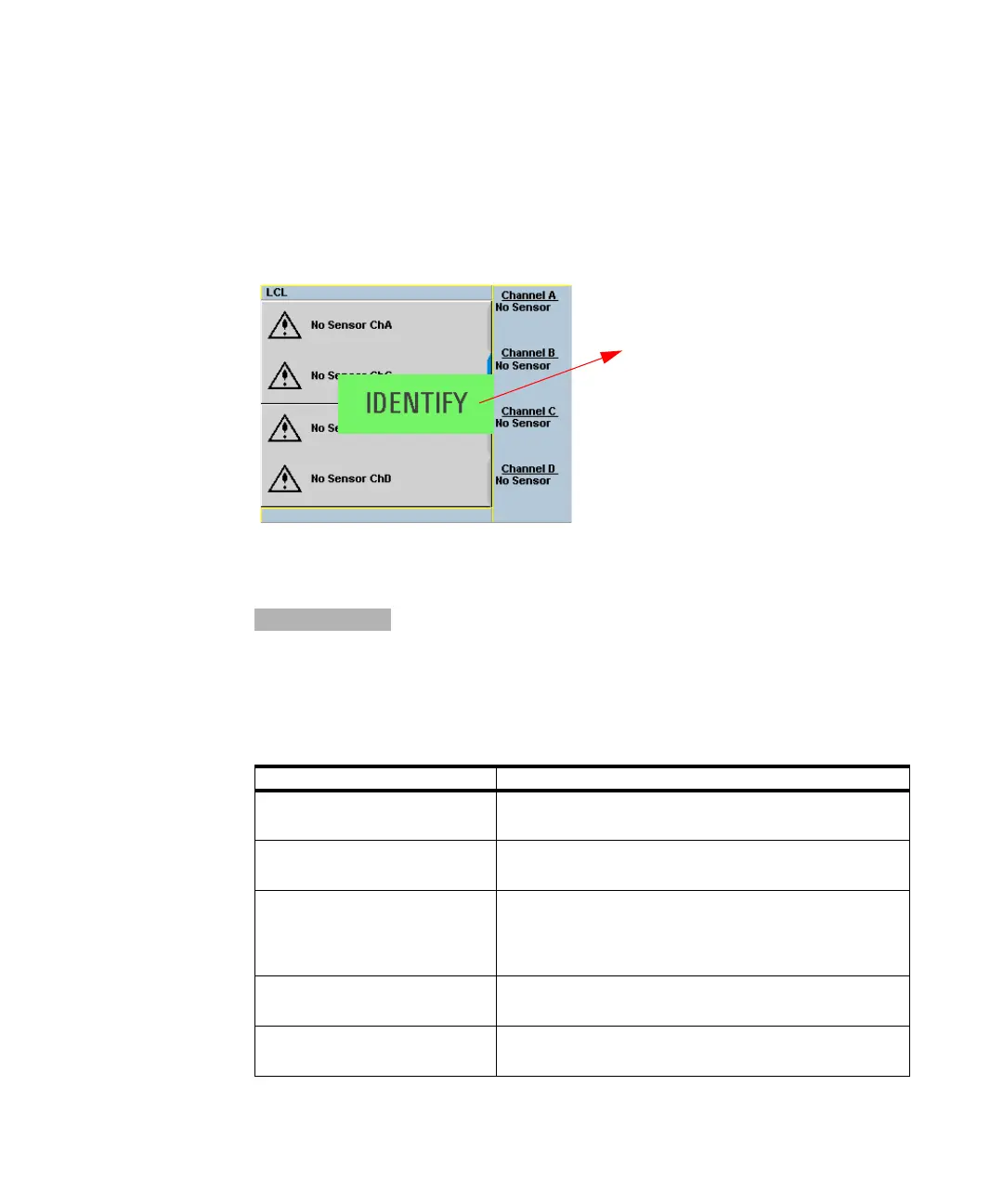

“IDENTIFY” message to blink
when the front panel
identification indicator is
turned on.
