1 Introduction
12 Agilent N1913/1914A EPM Series Power Meters User’s Guide

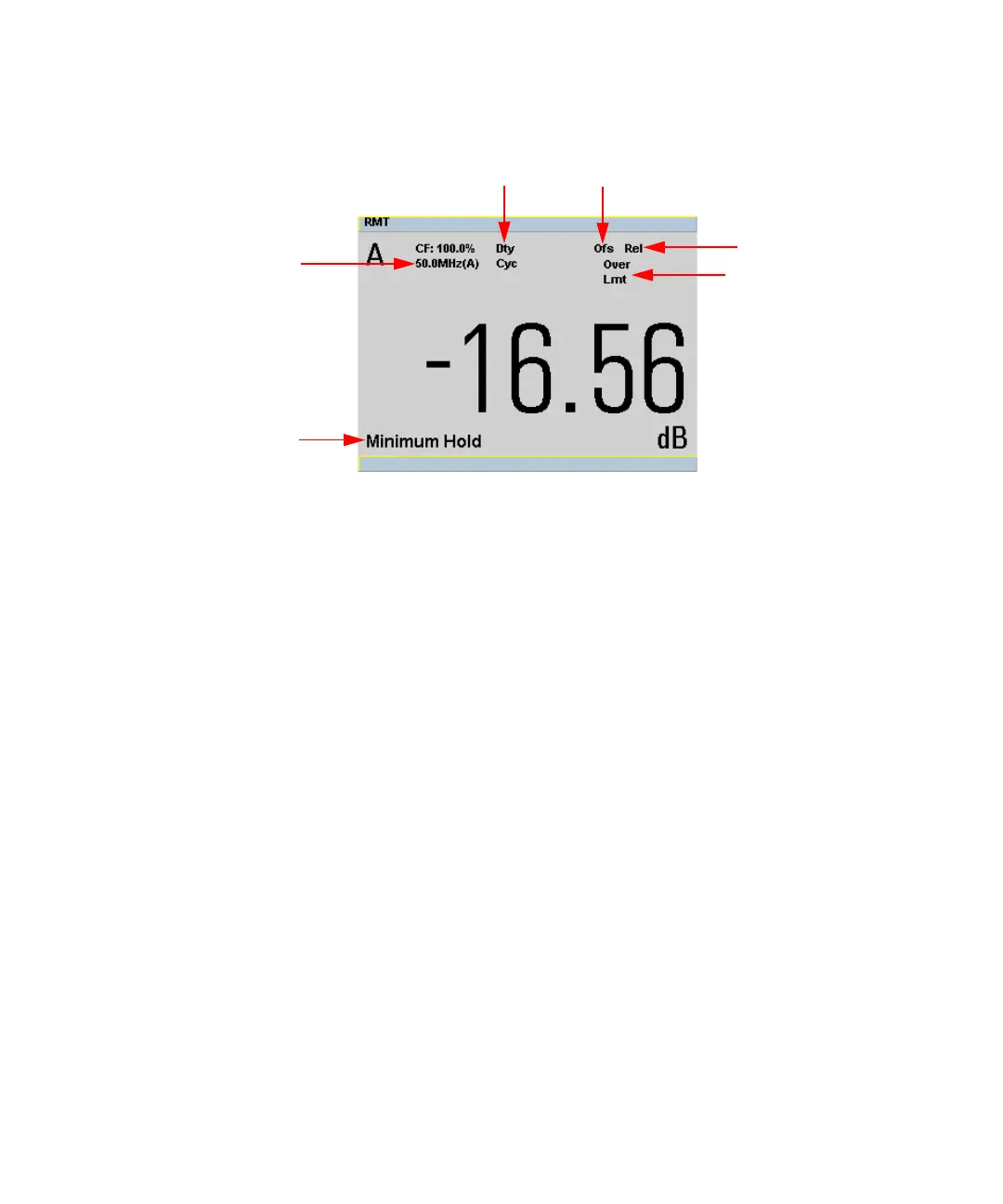

Figure 1-3 Full screen numeric display
Figure 1- 3 shows a single numeric full screen displaying a relative result.
13 This field displays Minimum Hold if range hold is set to minimum.
14 The information in this field is displayed on two lines and depends on
the sensor type, sensor calibration table, frequency dependent offset
table currently selected, and the measurement frequency.
15 This field displays Dty Cyc if a duty cycle is set.
16 This field displays Ofs if an offset is set.
17 This field displays Rel if relative mode is on.
18 This field indicates the measurement result is beyond the configured
upper or lower limit. If the measurement is within the limits this field
is empty. If the measurement result is less than the minimum limit set,
Undr Lmt is displayed. If the measurement result is more than the
maximum limit set, Over Lmt is displayed.
