Agilent N5161A/62A/81A/82A/83A MXG Signal Generators Service Guide
Troubleshooting
The Green Front Panel Power Switch LED or Yellow Standby LED is Not Working
1-58

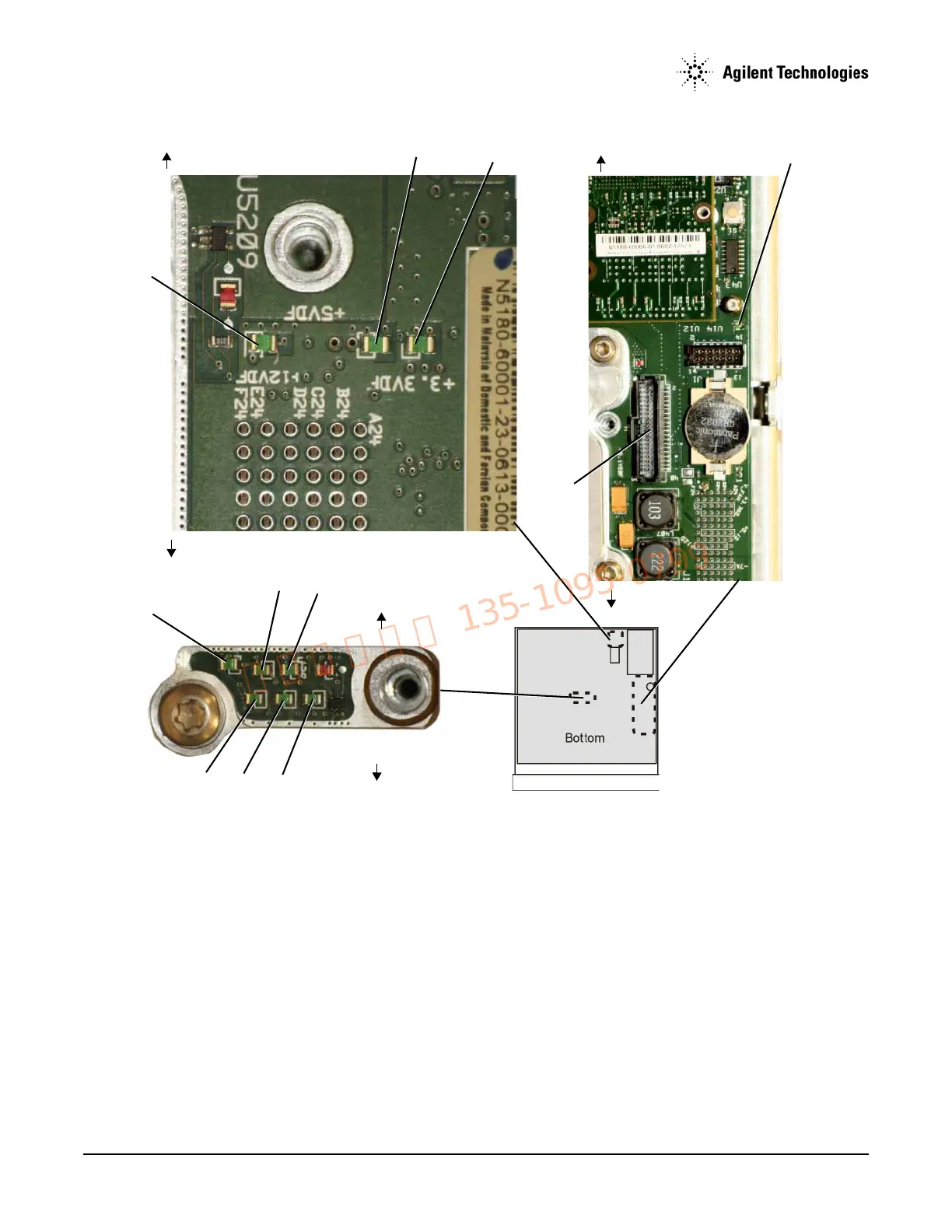

Figure 1-25 Power Supply LEDs
b. If any other power supply LEDs are off, go to “A1 Power Supply” on page 1-26 to troubleshoot the A1 Power Supply.
c. Verify that the W1 ribbon cable connections are tight.
d. Remove the front panel. Refer to Chapter 3, "Assembly Replacement".
e. Re-connect the W1 ribbon cable to the A3 RF assembly.
Front Panel
Rear Panel
Front Panel
Front Panel
Rear Panel
DS8
DS3
DS1
Rear Panel
DS2
DS4
DS9
DS7
DS6
DS10
DS5
J6-34
To Next Page
