Agilent Technologies N5230A User Manual

Service Guide N5230-90014 7-11
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
N5230A Removing and Replacing Front Panel Subassemblies
Replacement Procedure
NOTE When replacing the assemblies, ensure that the ribbon cables are not under
the assemblies.
1. Reverse the order of the removal procedure.
2. Perform the post-repair adjustments, verifications, and performance tests that pertain
to this removal procedure. Refer to Table 7-2 on page 7-45.

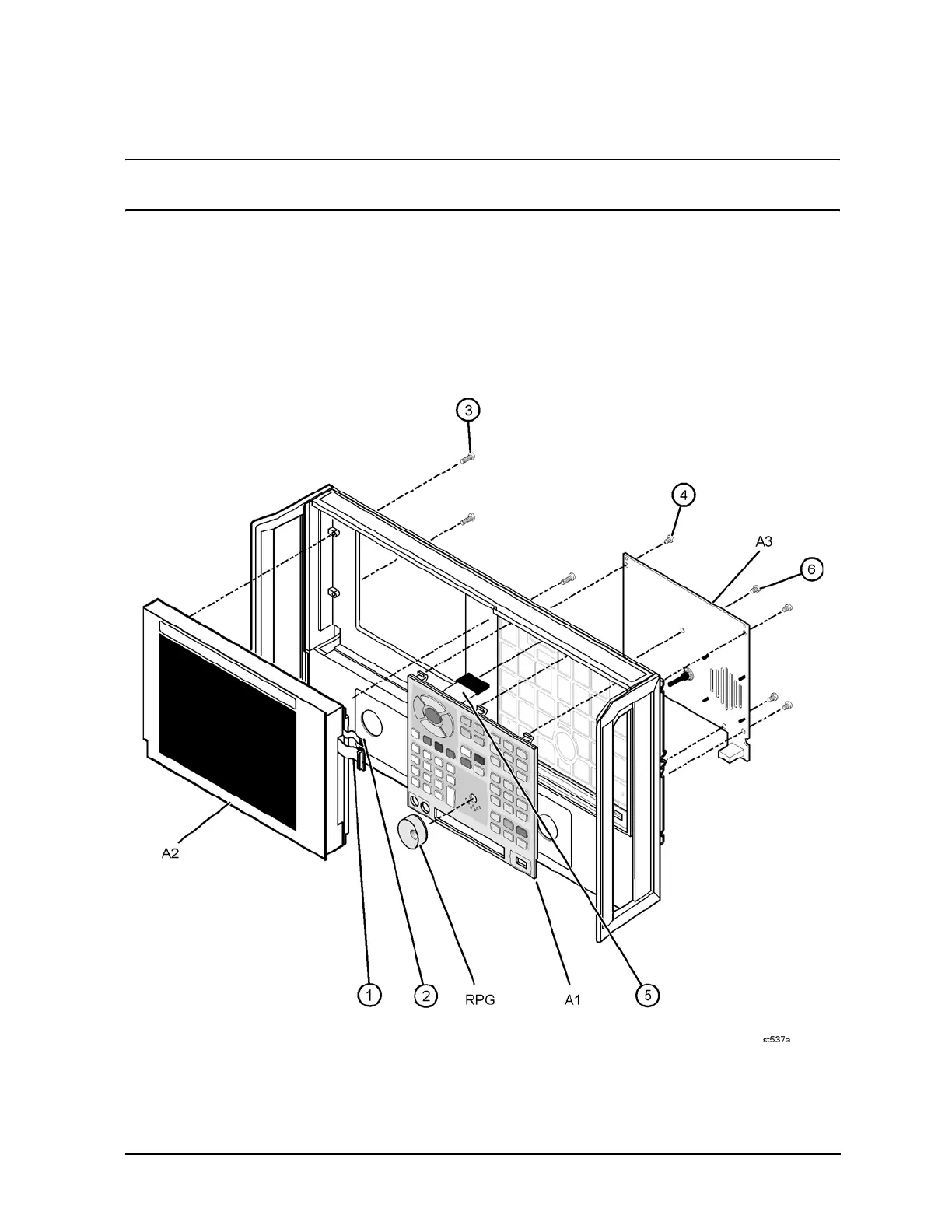

Figure 7-3 Front Panel Subassemblies Removal
