PNA Series Microwave Network Analyzers Tests and Adjustments
N5230A Non-ANSI/NCSL Z540–1–1994 Verification
Non-ANSI/NCSL Z540–1–1994 Verification
For non-ANSI/NCSL Z540-1-1994, perform the preliminary checks and the performance
tests while stopping to troubleshoot. Refer to Figure 3-2 for test flow. Troubleshoot and
repair the first problem encountered without continuing to other tests. After you
troubleshoot, repair, and adjust, repeat the last failed portion and generate a new set of
data.

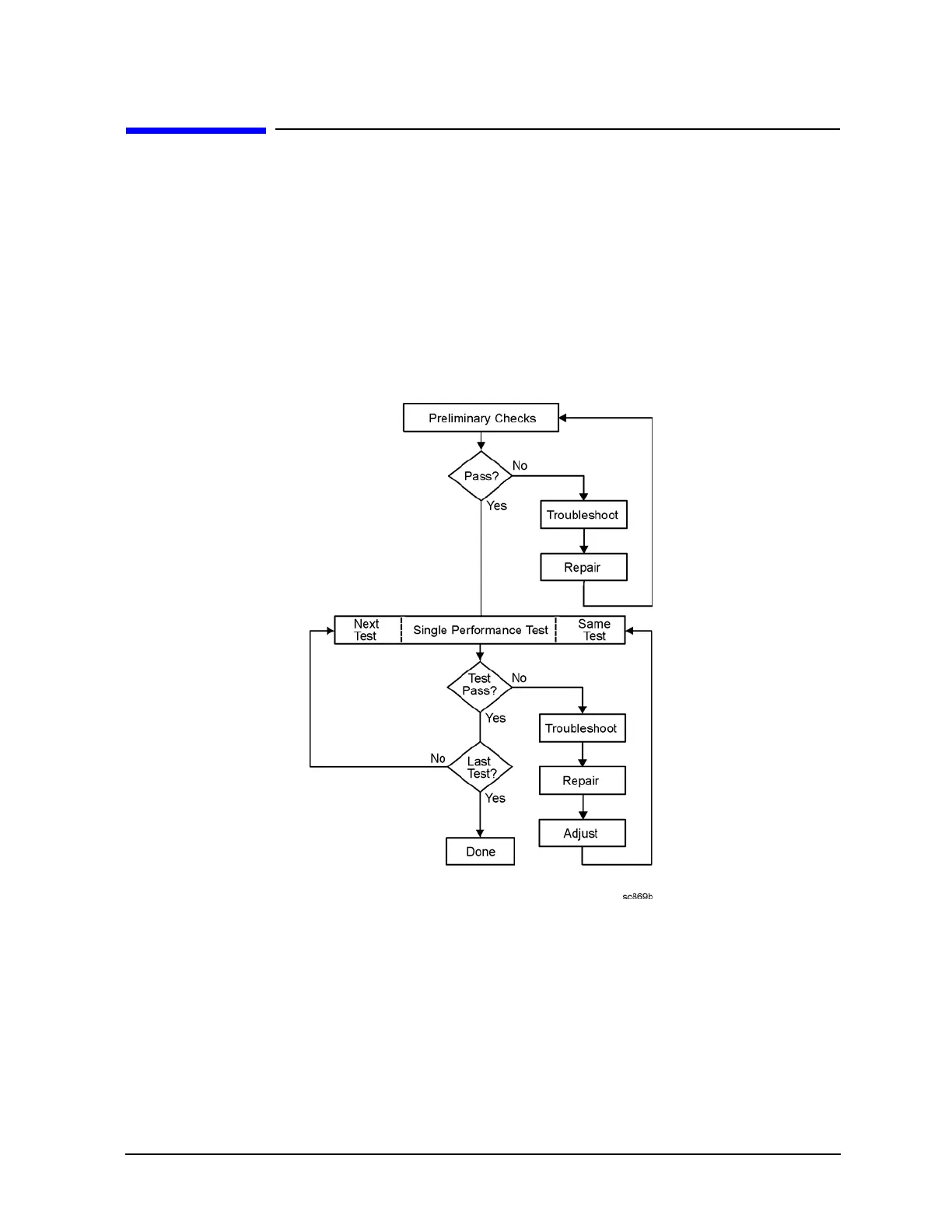

Figure 3-2 Non–ANSI/NCSL Z540–1–1994 Test Path Verification Flowchart
To Next Page
