Agilent Technologies N5230A User Manual

Service Guide N5230-90014 4-5
PNA Series Microwave Network Analyzers Troubleshooting
N5230A Getting Started with Troubleshooting
Troubleshooting Organization
Follow the flowgraph in Figure 4-1 to help direct you to the correct section for
troubleshooting the analyzer.

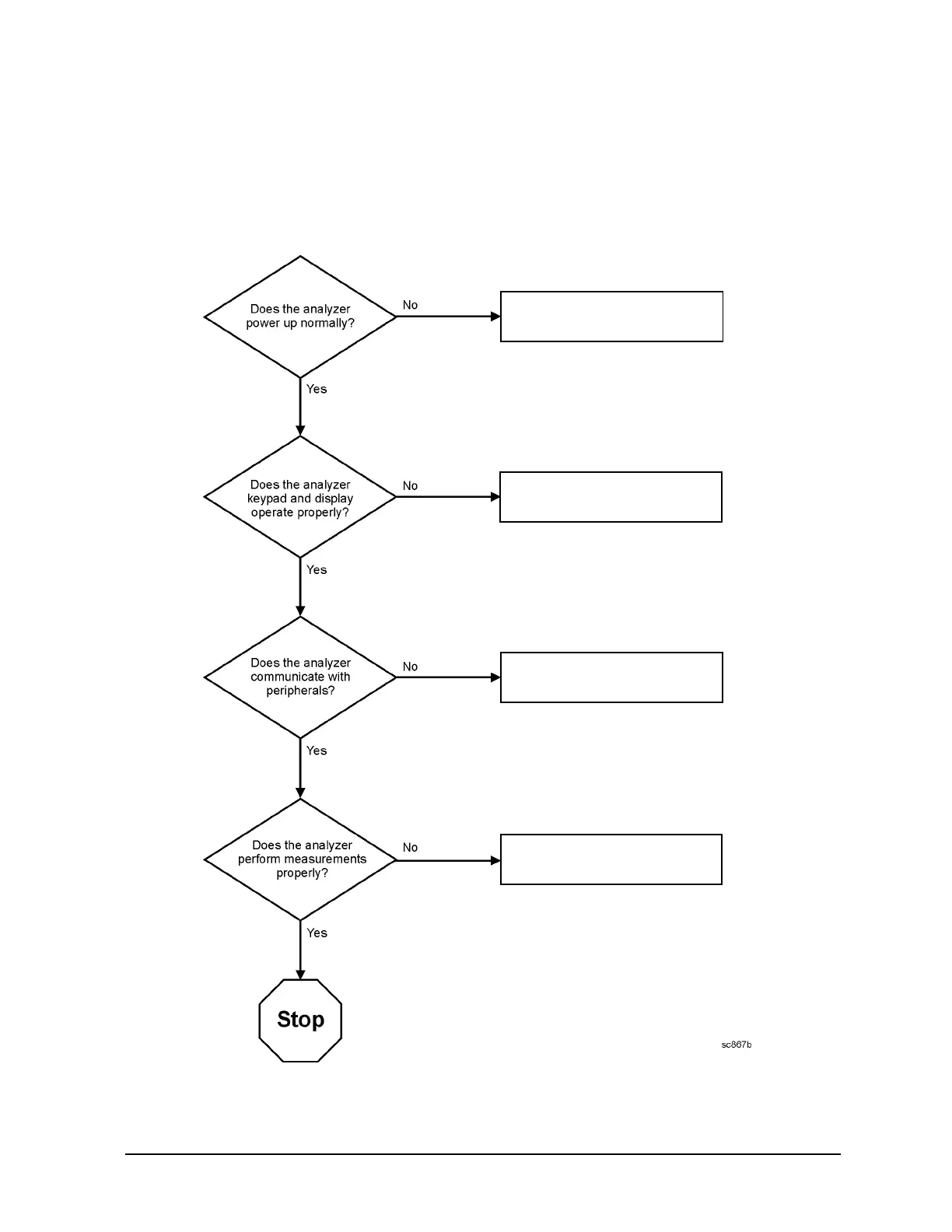

Figure 4-1 Troubleshooting Organization Flowchart
Go to “Power Up Troubleshooting”
on page 4-6.
Go to “Front Panel Troubleshooting”
on page 4-16
.
Go to “Rear Panel Troubleshooting”
on page 4-20
.
Go to “Measurement System
Troubleshooting” on page 4-26
.
