Service Guide N5230-90014 3-37
PNA Series Microwave Network Analyzers Tests and Adjustments
N5230A Adjustments
Source Calibration Adjustment
The source calibration is used to adjust your network analyzer for a flat source power
across its full frequency range. There are differences between each test port; therefore, an
adjustment is required for each port.
Equipment Used for the Source Calibration Adjustment
Procedure
1. Connect the equipment as shown in Figure 3-14. Connect a GPIB cable between the
network analyzer and the power meter.

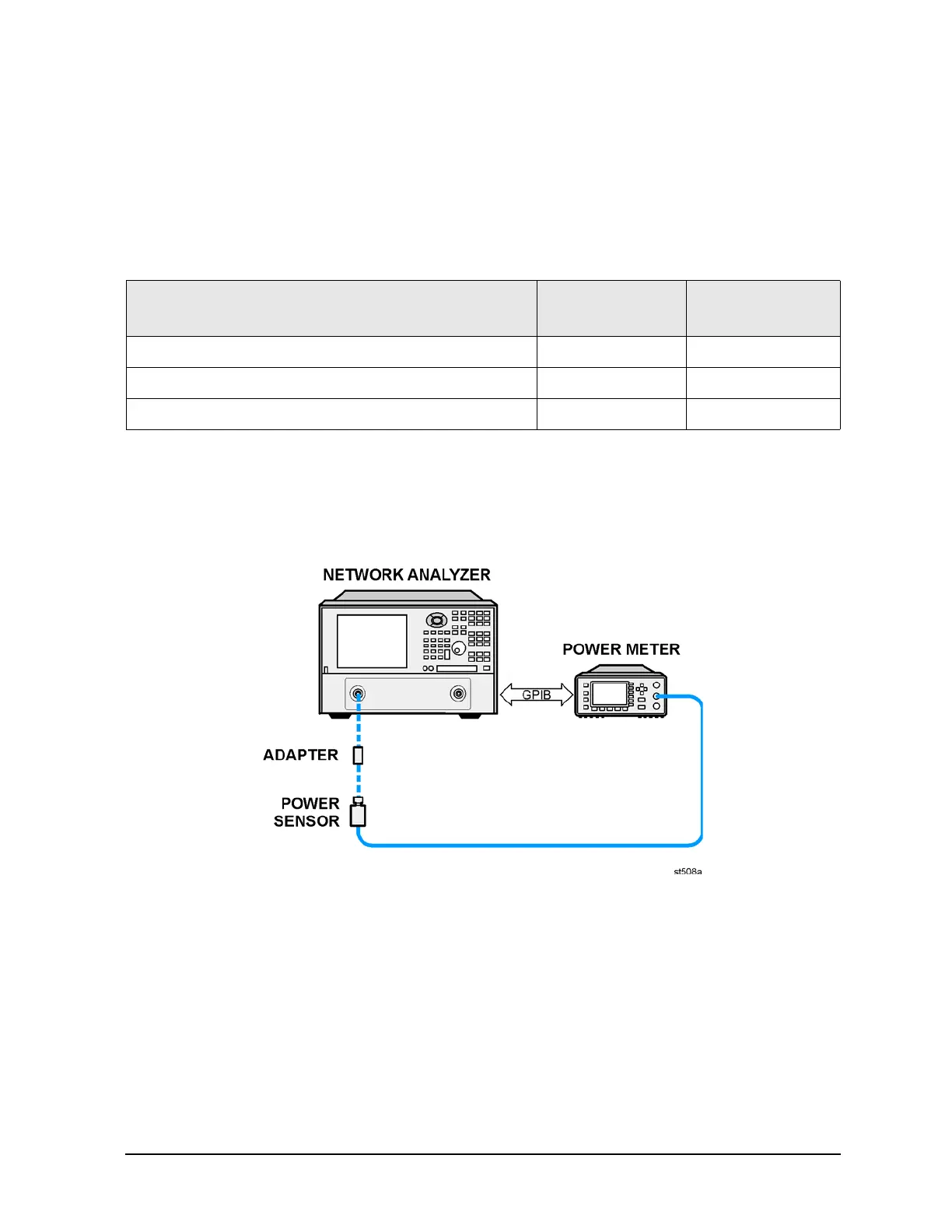

Figure 3-14 Setup for the Source Calibration Adjustment
2. On the System menu, point to Service, Adjustments, and then click
Source Calibration.
3. Ensure the GPIB settings are correct.
4. Click Calibrate, and then follow the instructions as they are displayed.
Equipment Type
Model or
Part Number
Alternate Model or
Part Number
Power meter E4418B/E4419B E4418A/E4419A
Power sensor, 3.5 mm E4413A 8485A
Adapter, 3.5 mm (f) to 3.5 mm (f) 83059B 85052-60012
To Next Page
