Service Guide N5230-90014 7-35
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
N5230A Removing and Replacing the A41 Hard Disk Drive (HDD)

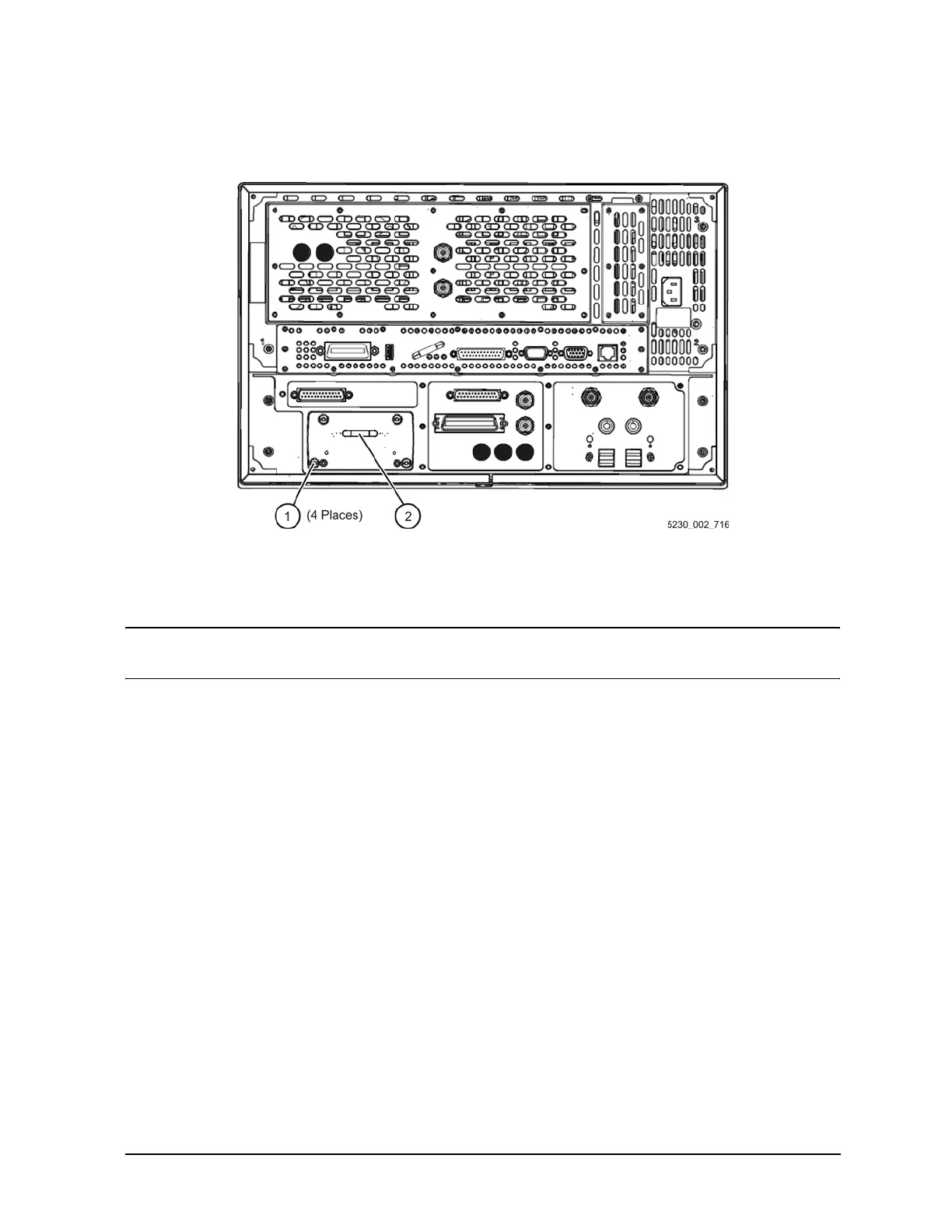

Figure 7-16. Hard Disk Drive Assembly Removal
Disassembling the HDDA
NOTE
If the HDD is being replaced by the HDDA (N8980A or N8981A), it is not
necessary to perform these steps.
Refer to Figure 7-17.
1. Remove the HDDA from the analyzer. Refer to “Removal Procedure” on page 7-34.
2. With a T-10 TORX driver, remove the four screws (item
①
), and the eight bushings
(item
②), that mount the HDD (item
④
), to the bracket.
3. Disconnect the HDD (item
④
) from the interface board (item
③
).
To Next Page
