Service Guide N5230-90014 8-5
PNA Series Microwave Network Analyzers General Purpose Maintenance Procedures
N5230A Error Terms

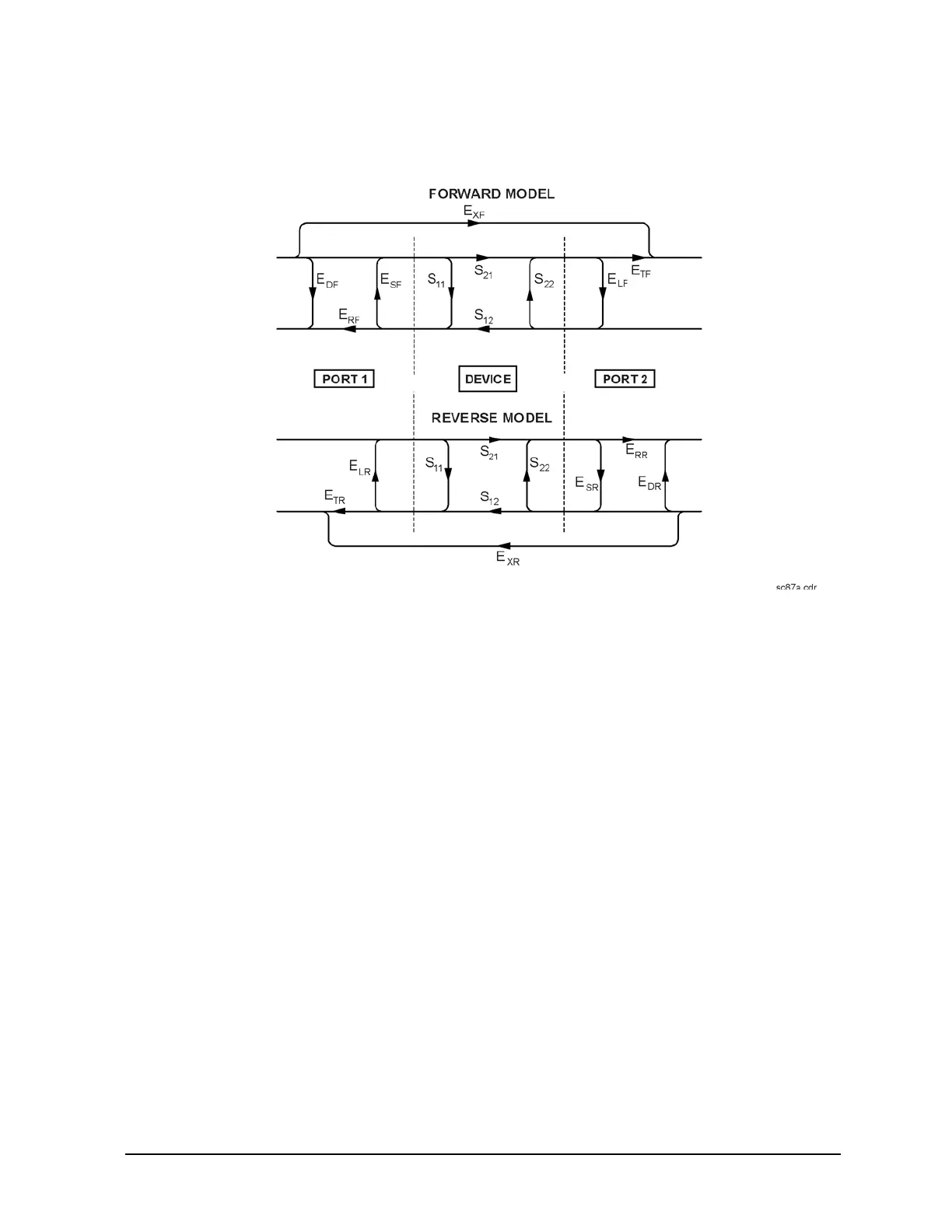

Figure 8-2 Flowgraph of Two-Port Error Terms
where:
E = error term
1st Subscript:
D = Directivity
S = Source Match
R = Reflection Tracking
X = Crosstalk (Isolation)
L = Load Match
T = Transmission Tracking
2nd Subscript:
F = forward measurement (Port 1 to Port 2)
R = reverse measurement (Port 2 to Port 1)
