5Key Reference
90 N9342C/43C/44C User’s Guide
3 Press [Amplitude] > {More} > {Corrections} >
{Correction1} > {Load User}. The saved correction
file is displayed in the file catalog menu.
4 Press {Recall} to load this correction file. The
correction file name will be shown on the
{Correction1} softkey and the {Apply Corrections} is
set to On automatically which indicates the
amplitude compensation has been applied to the
displayed trace.
Press {Apply Corrections off} to turn off all the
correction from correction1 to 4.
Set {Antenna Unit} to On to switch to graticule unit
from dBm to dBmV/m for field strength
measurement.

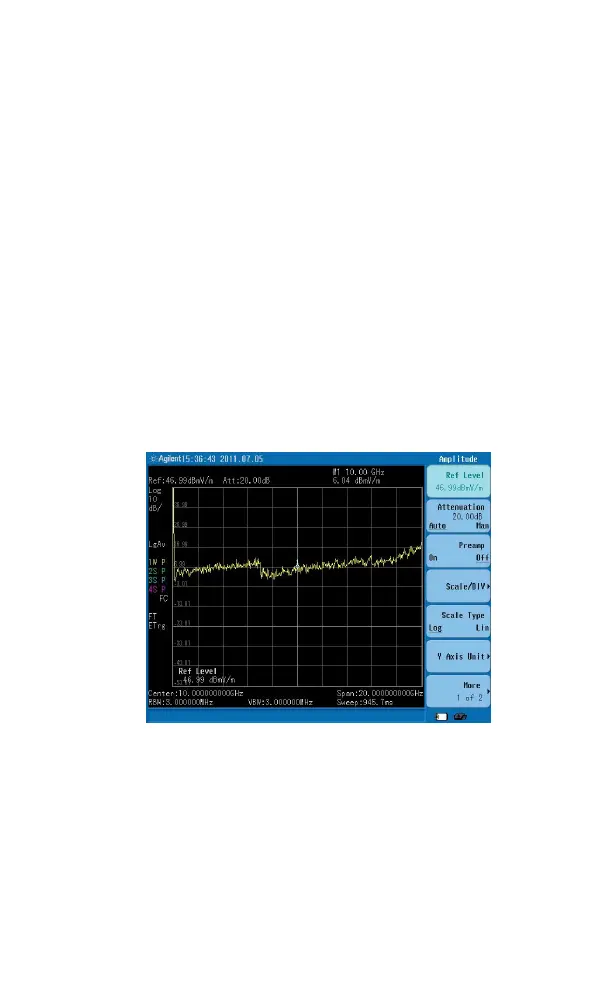

Figure 4-2 Field Strength Measurement
