31
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4

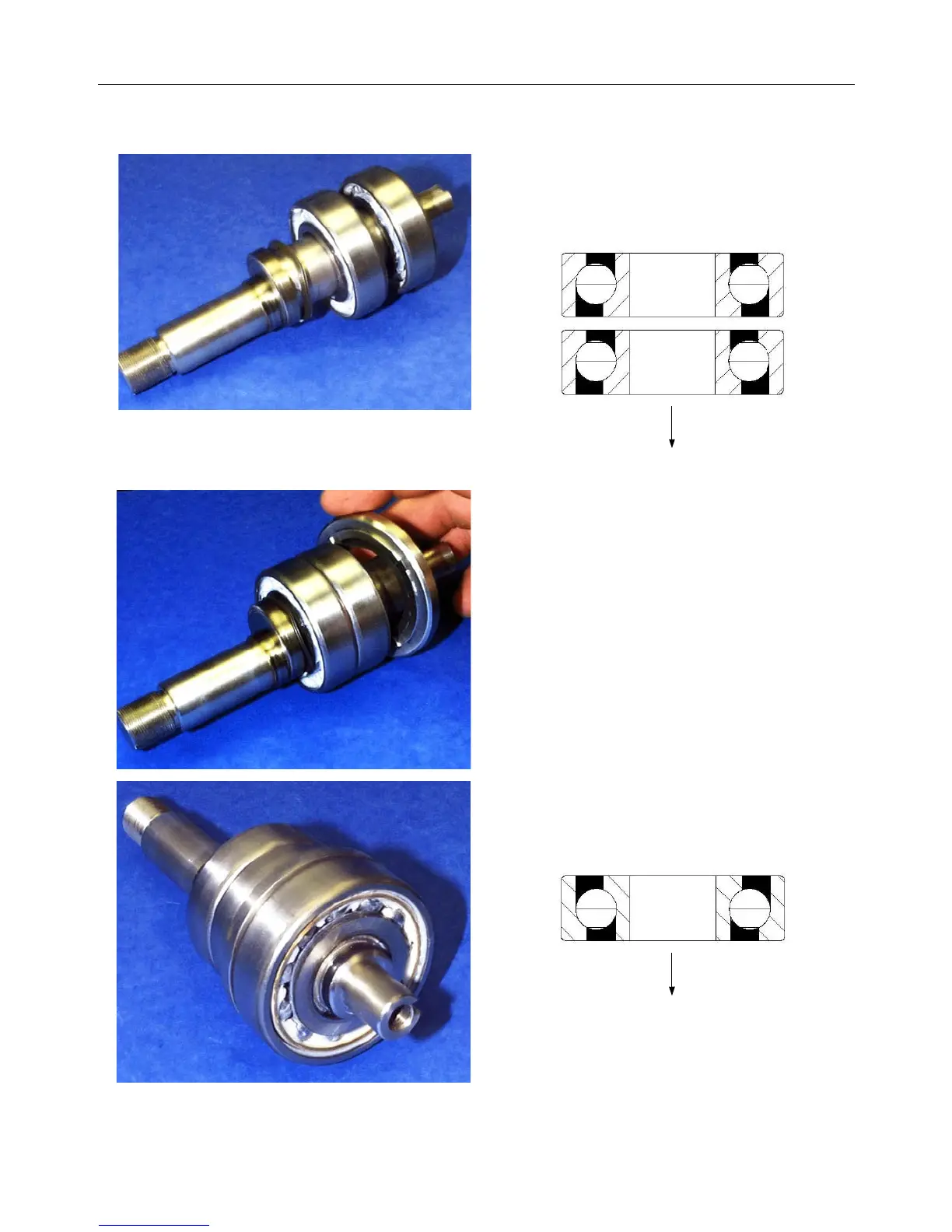

2. Install both 7205W SU bearings onto the
crankshaft.
3. Install the bearing spacer onto the
crankshaft.
4. Install the 7305WN SU bearing onto the
crankshaft.
Assemble the Crankshaft (continued)
Observe Proper Orientation
Toward Wave Washer
Observe Proper Orientation
Observe Proper Orientation
Toward Wave Washer
