Agilent Technologies TriScroll 600 Series Major Maintenance Manual

32
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4

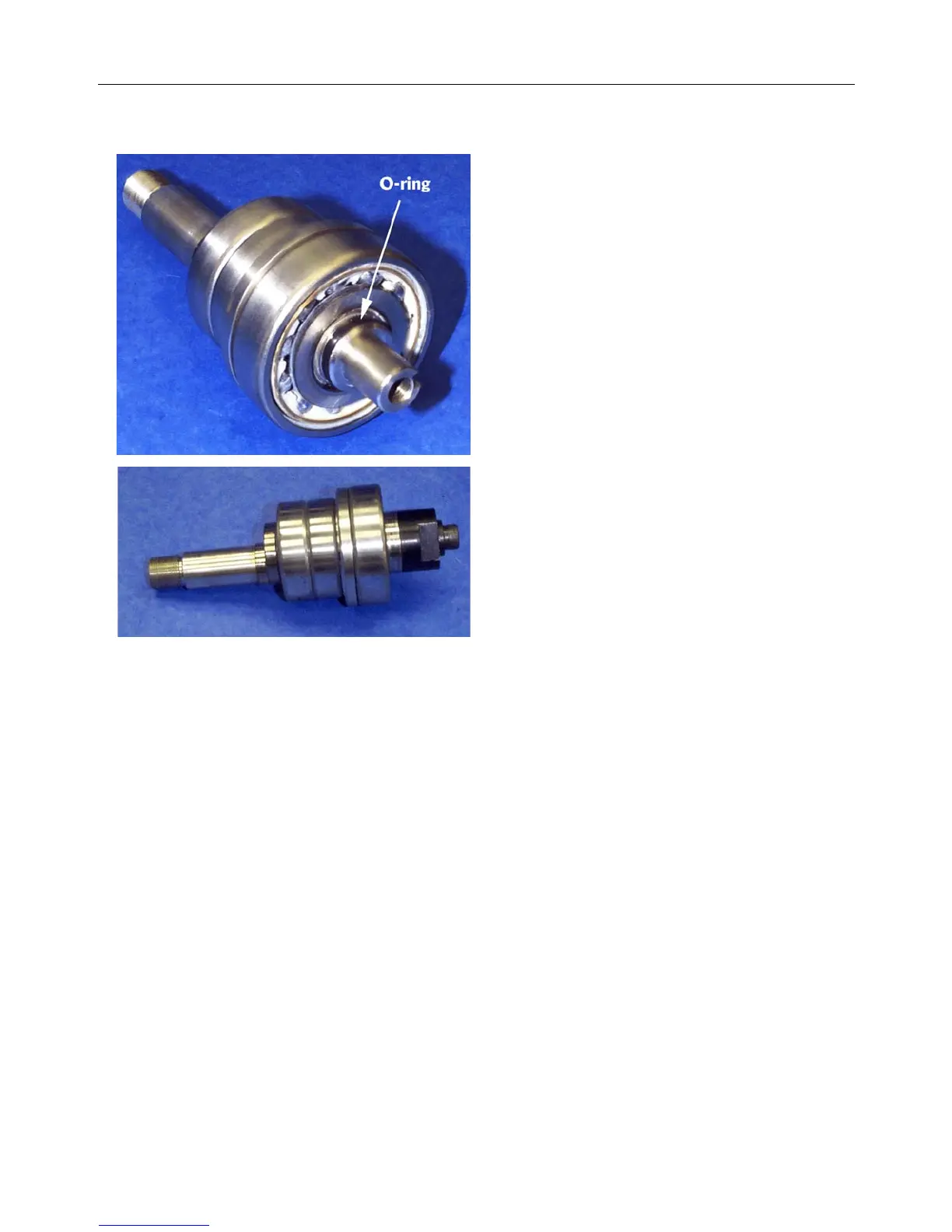

5. Lightly grease the O-ring and install it in the
groove on the crankshaft.
6. Install the key in the slot.
7. Install the seal spacer over the O-ring.
8. Slide the bearing pre-load tool onto the
crankshaft engaging the key.
9. Secure it with the M8x12 screw and washer.
Assemble the Crankshaft (continued)
