Agilent Technologies TriScroll 600 Series Major Maintenance Manual

54
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4

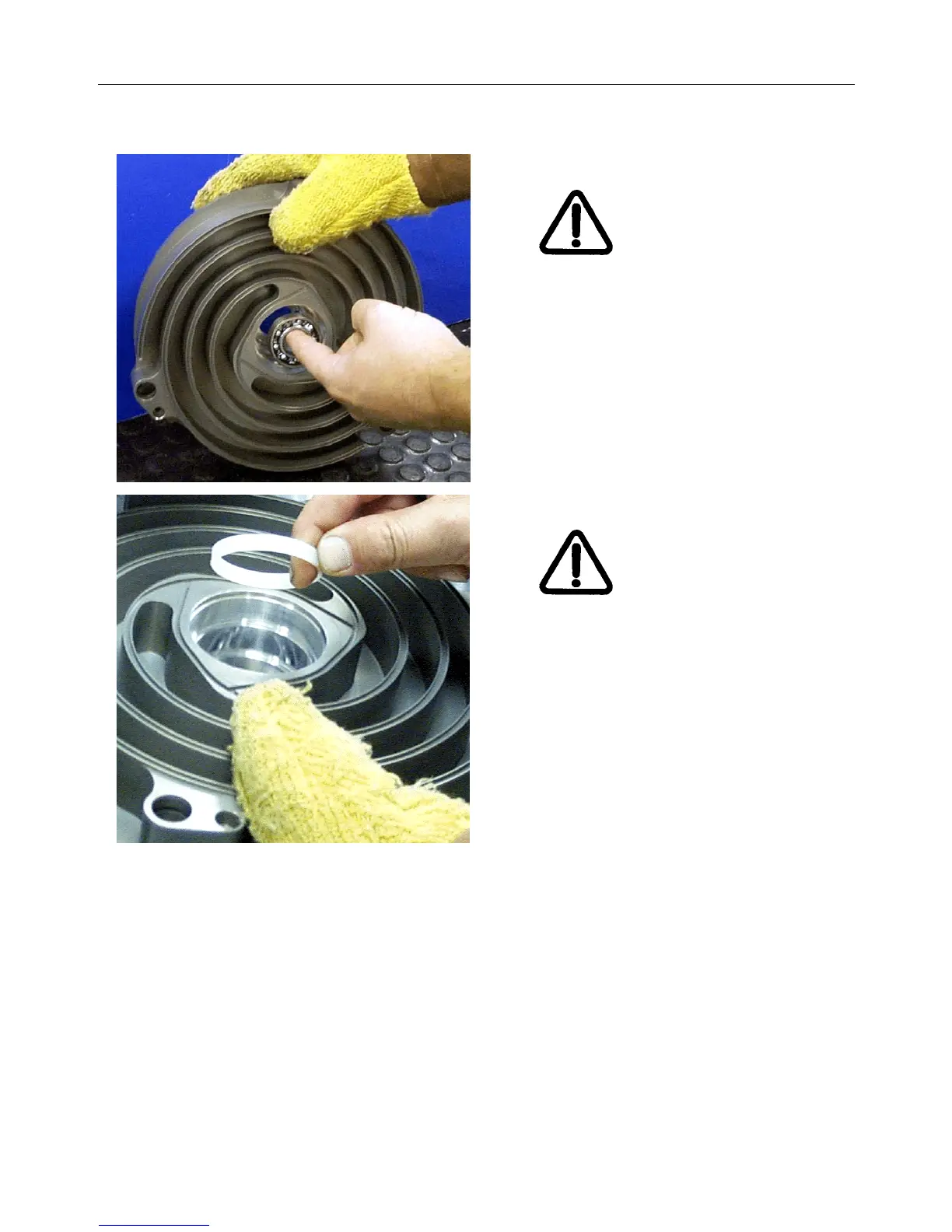

3. Immediately after removing the orbiting
plate from the oven, insert the J9104P
bearing, sealed side toward the bore.
4. Immediately, and while the orbiting plate is
still hot, drop the nylon sleeve into bore and
around the J9104P bearing.
Orbiting Plate Assembly (continued)
WARNING Assembly is hot, use heat
resistant gloves.
WARNING Assembly is hot, use heat
resistant gloves.
