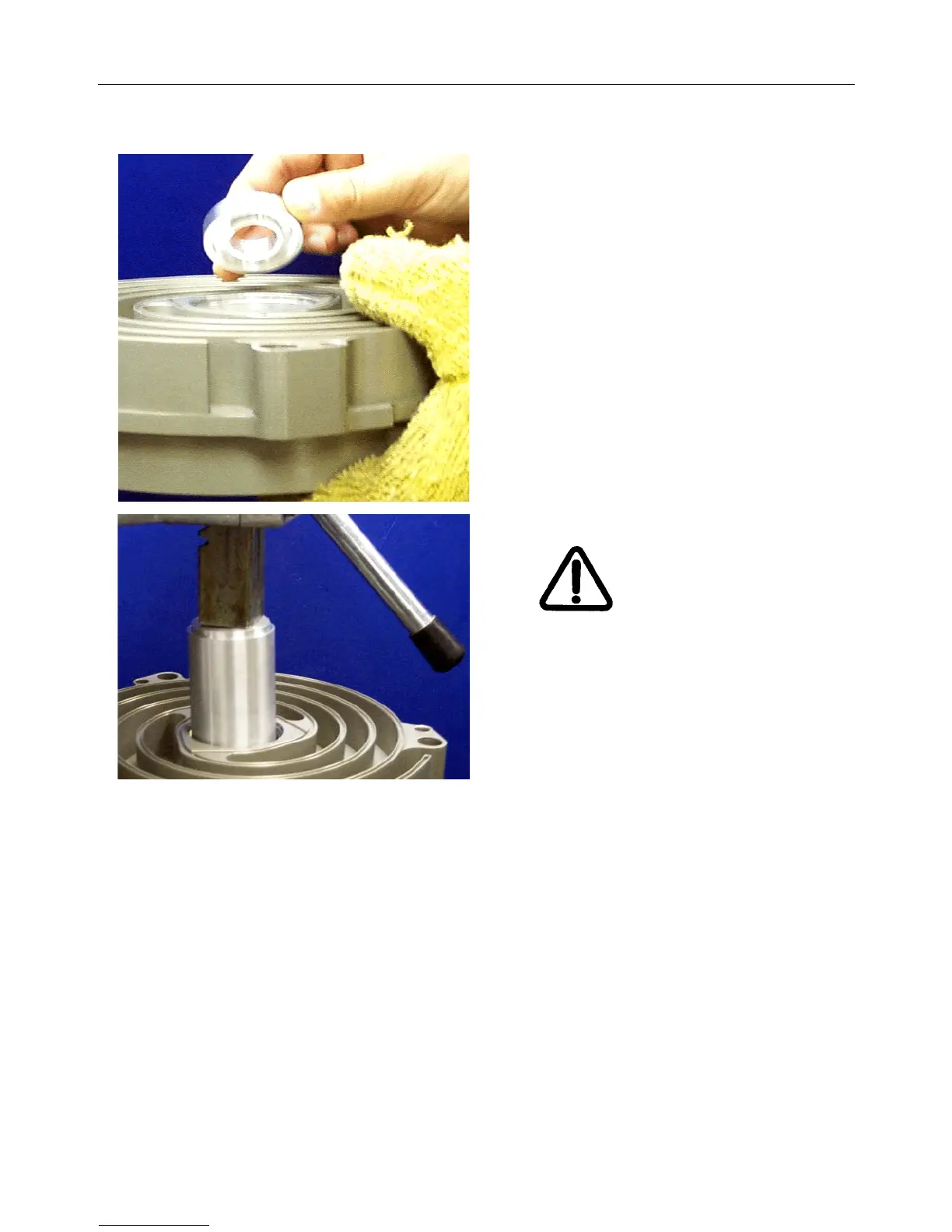

5. Drop the orbiting spacer on top of the nylon
sleeve.
6. Using an arbor press, press against the
orbiting spacer until it is flush with the open
end of the J9104P bearing.
Orbiting Plate Assembly (continued)
WARNING Assembly is hot, use heat
resistant gloves.
