Agilent Technologies TriScroll 600 Series Major Maintenance Manual

56
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4

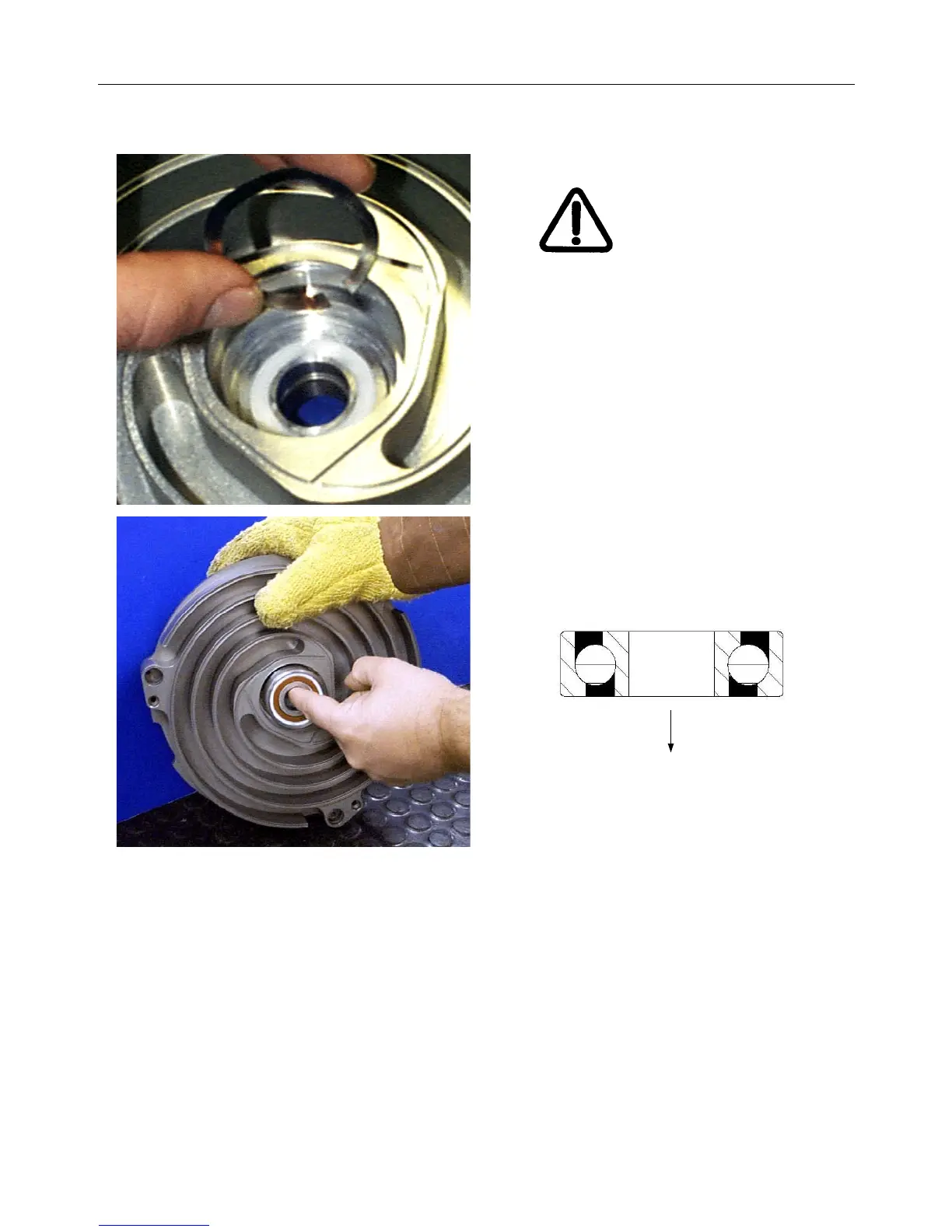

7. Immediately, while orbiting plate is still hot,
drop the wave washer on top of the orbiting
spacer.
8. Immediately insert the 7304WN SU bearing
into the bore and against the orbiting
spacer.
Orbiting Plate Assembly (continued)
WARNING Assembly is hot, use heat
resistant gloves.
Observe Proper Orientation
Toward Bore
