9. Immediately, while the orbiting plate is still
hot, place the orbiting plate onto the post of
the orbiting plate fixture that has the larger
bottom disk.
10. Place the large washer and the locking nut
onto the post and tighten the entire
assembly.
11. Allow the orbiting plate to air cool
completely.
12. Once it is cooled, remove the orbiting plate
from the orbiting plate fixture.
13. Replace the washer and tighten the nut onto
the orbiting plate fixture.

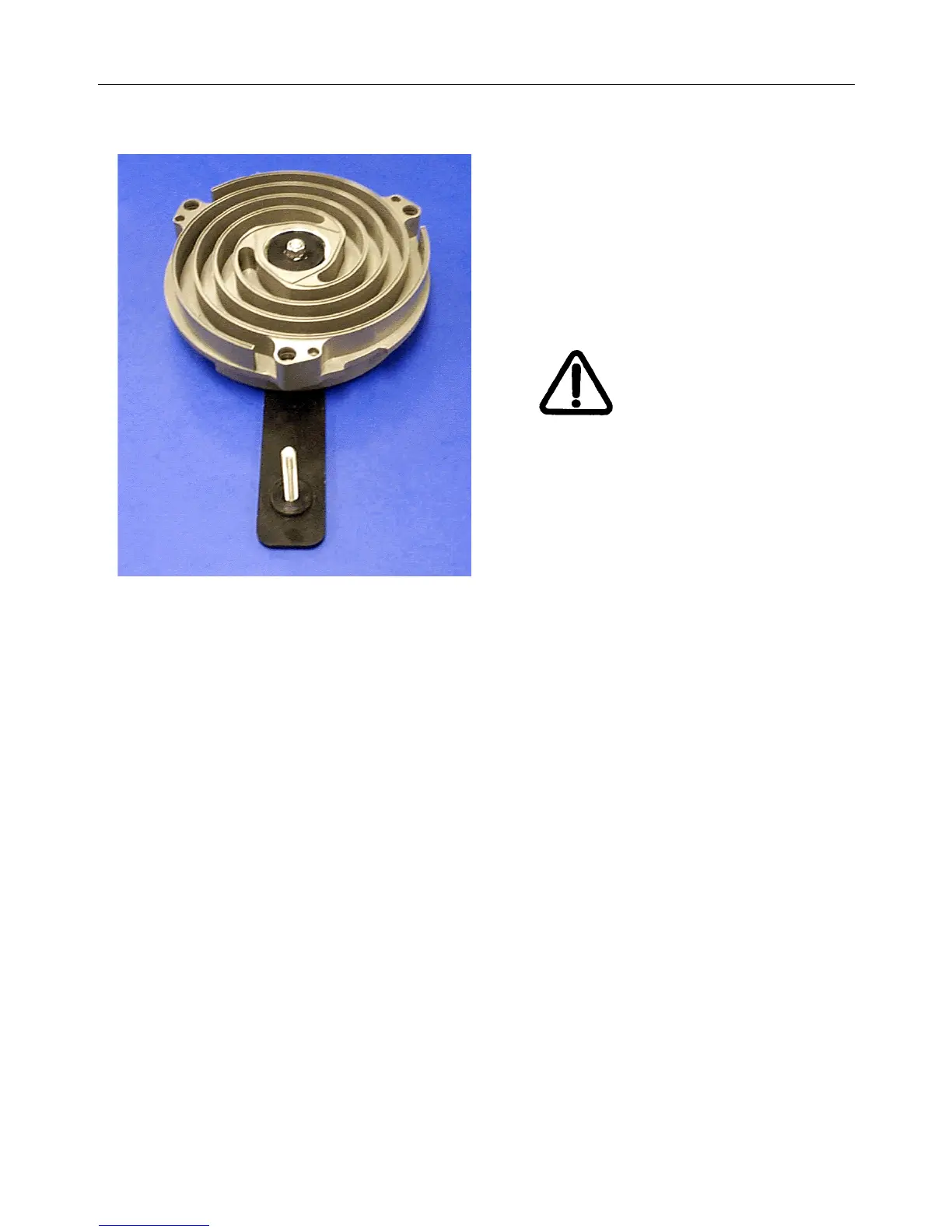

Orbiting Plate Assembly (continued)
WARNING Assembly is hot, use heat
resistant gloves.
