Agilent Technologies TriScroll 600 Series Major Maintenance Manual

75
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1

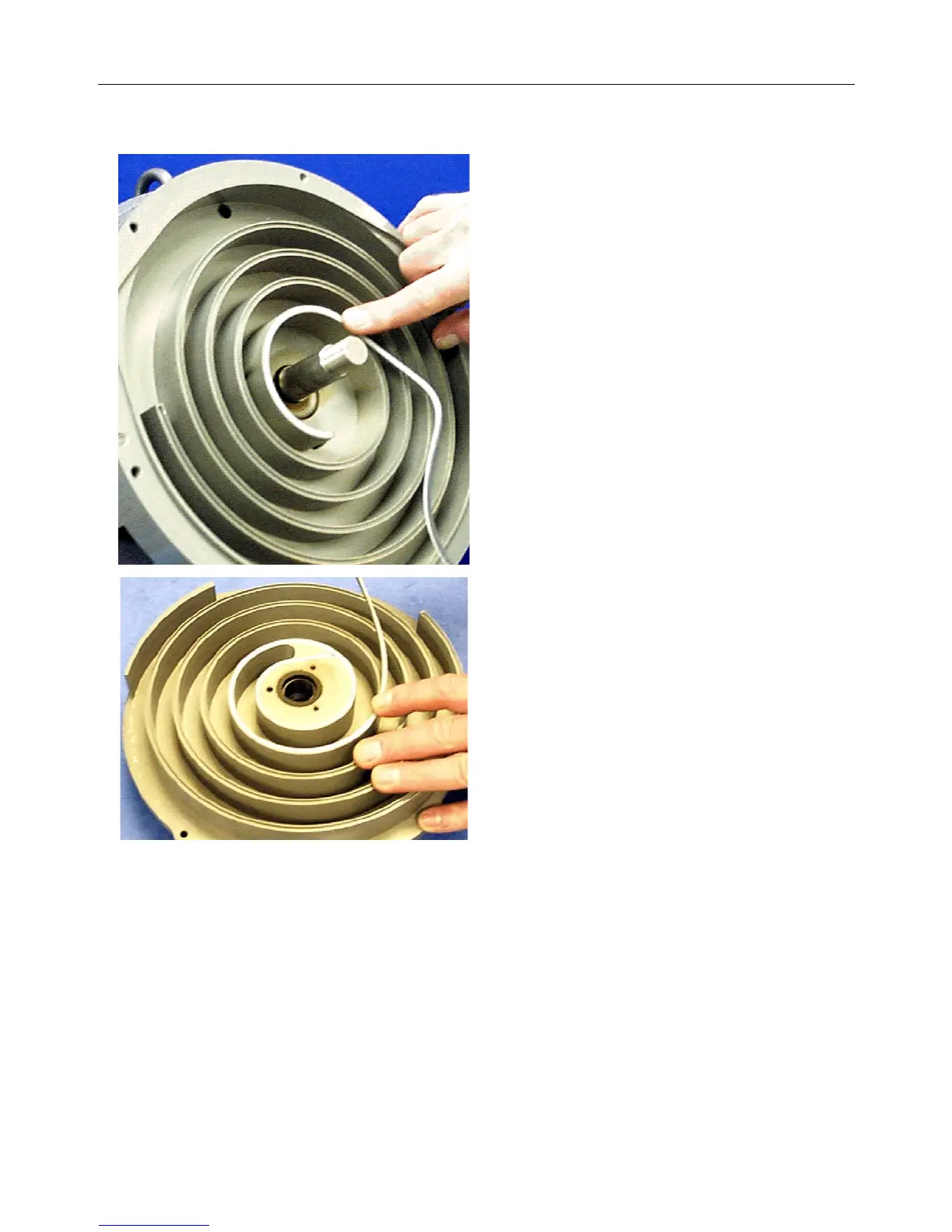

8. Insert the tip seal into the scroll tip grooves
on the inboard housing.
9. Cut to the correct length at the end of each
groove.
10. Insert the tip seal into the scroll tip grooves
on the inboard side of orbiting plate.
11. Cut to the correct length at the end of each
groove.
Final Assembly (continued)
