Getting Started
32 Agilent Vapor Generation Accessory VGA 77 and VGA 77P User’s Guide

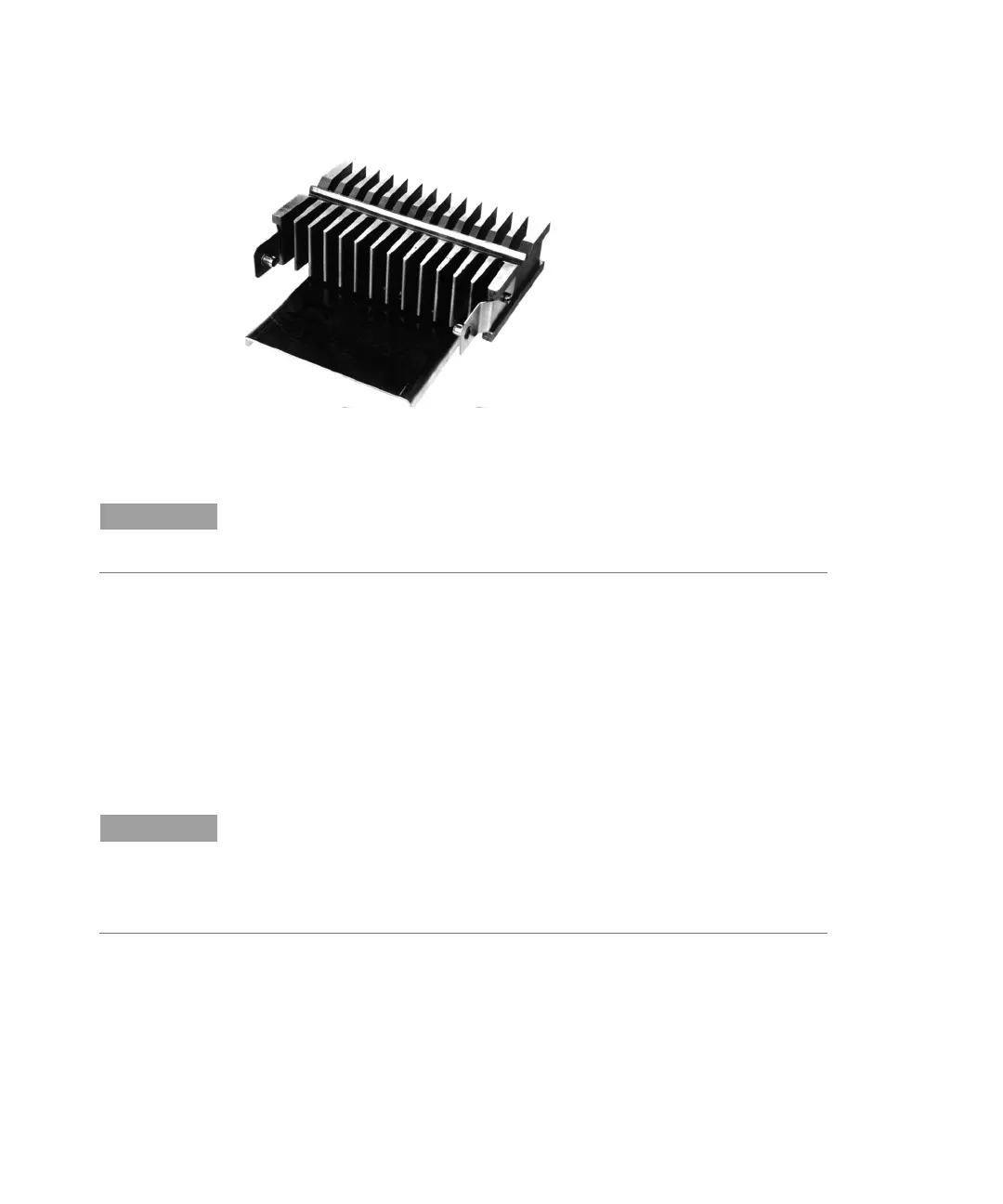

Figure 10. Mark VI burner with burner clamps installed
NOTE
The Mark VI-A burner looks different to the Mark VI burner, however the
procedure for installing the clamps is the same.
Mark V Burner
If you have a Mark V burner (or earlier version), you will need a cell
holder and burner mount for this burner. (Refer to Page 79 for
ordering information.)
To install the burner clamp for the Mark V burner:
1 Slacken the two clamping screws on the underside of the clamp.
NOTE
The ‘front’ of the air-acetylene burner carries the identification label. Orient the
clamp so that the two mounting pegs are at the front of the burner. This will
ensure that the burner identification label is still visible through the ‘open’
portion of the clamp.
2 Fit the clamp over the burner so that the two positioning lugs at
each end of the clamp rest on top of the burner, on either side of
the burner slot.
3 Tighten the clamping screws.
