To connect the outlet of the gas/liquid separator to the inlet of the
cell:
1 Use a sharp scalpel to neatly cut an appropriate length of the
black fluoro-elastomer tubing supplied.
2 Fit one end of the tubing over the inlet stem of the cell (for Hg
cell push tubing into the inlet) and the other end over the vapor
outlet of the gas/liquid separator.
NOTE
When the VGA 77 is not being used, disconnect the tubing from the separator
and store the cell in its holder at the front of the module.

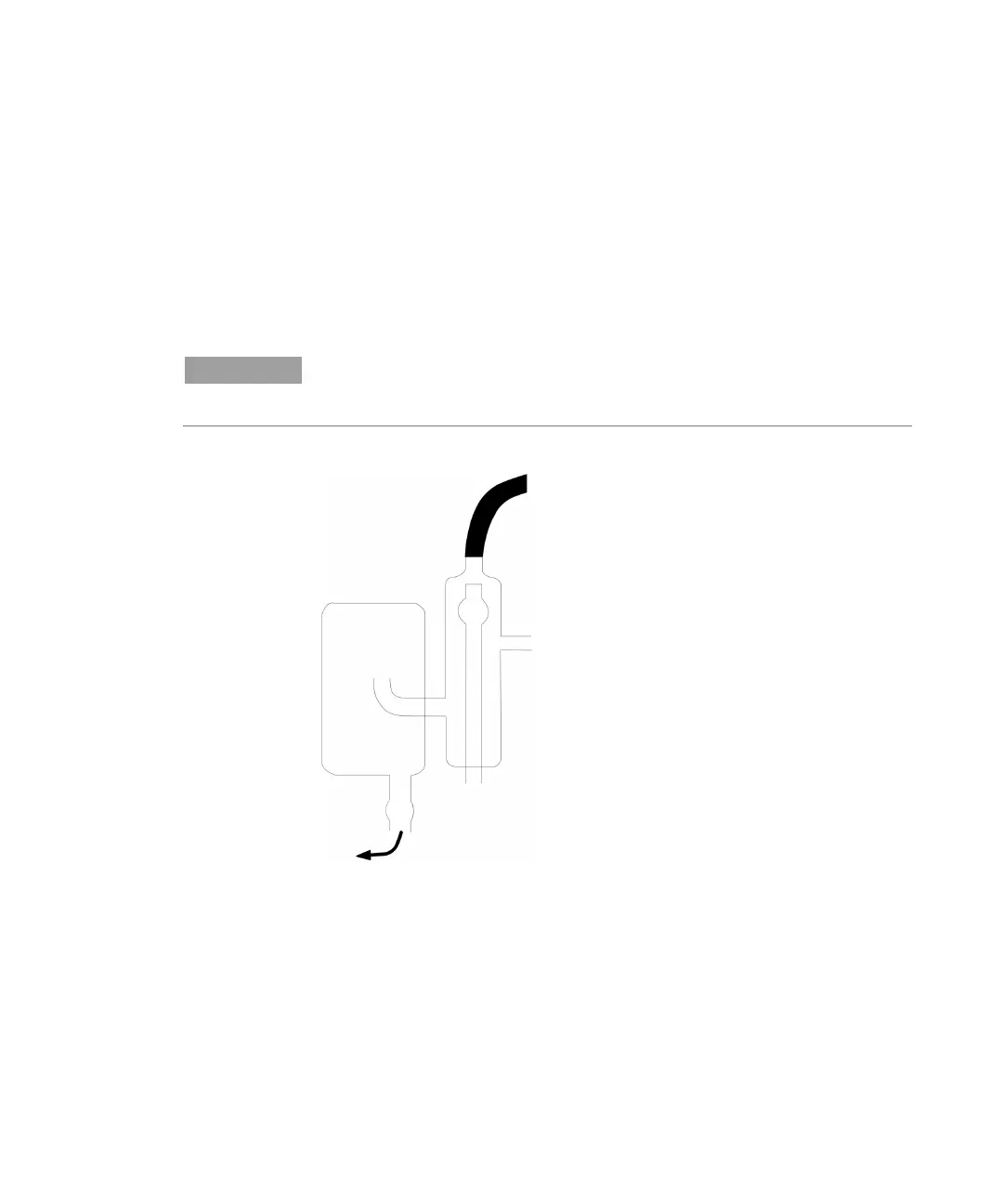

Figure 16. Gas/liquid separator for an AA module
Vapor outlet
Fluoro-elastomer tubing (black)
Connection from reaction coil
Argon inlet
Drain outlet
To waste vessel
