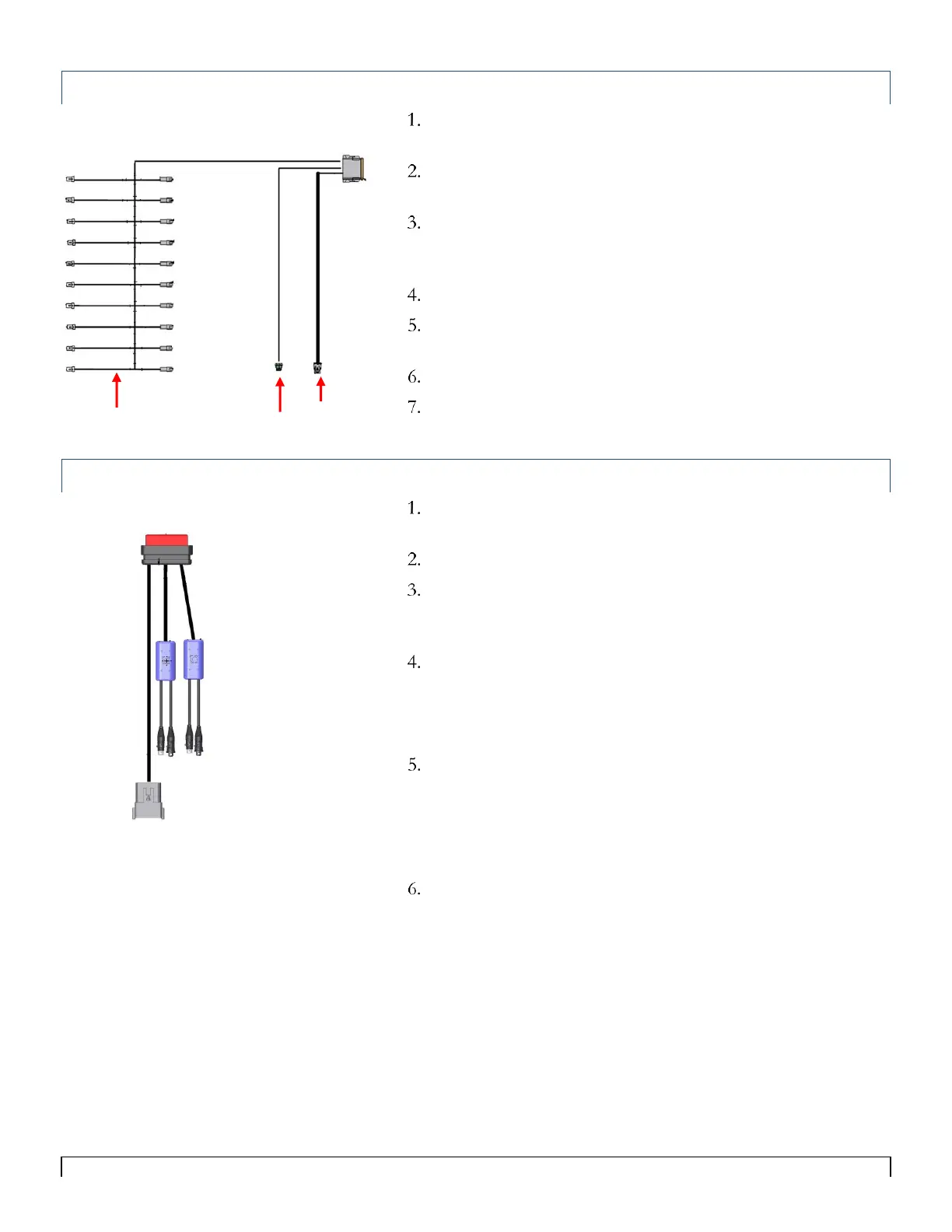

Legend S.A. Air Cart Harness Installation
Disconnect manufacturers 2 pin Deutsch connector from
Section 1 solenoid.
Connect 2 pin Deutsch connector for Section 1 on Legend
Air Cart Harness (AGD1725) into Section 1 solenoid.
Connect manufacturers 2 pin Deutsch connector for Section
1 into Section 1 on Legend S.A. Air Cart Harness
(AGD1725).
Repeat for remaining sections on Air Cart.
Route the 12 pin Deutsch connector to the hitch of the Air
Cart.
Connect Work Switch connector to Work Switch. (Optional)
Connect Speed connector to Speed Sensor. (Optional)
Legend S.A. Loop Harness Installation (60 Sensor per Loop or Less)
Select a mounting location for the Legend S.A. Loop Harness
in the center of the implement.
Connect the 35 pin black Ampseal connector to the ECU.
Connect the 12 pin Deutsch connector to the Legend S.A.
Air Cart Harness (AGD1725). If needed a 40’ extension cable
is available. (AGD1720).
Route the Loop 1 male sensor loop cable towards the far left
side of the implement using Legend Loop Cables as needed.
This end of the cable will connect to sensor 1 on the first
manifold on the left side of the implement.
Route the Loop 1 female sensor loop cable towards the far
right side of the implement using Legend Loop Cables as
needed.
This end of the cable will connect to the last sensor in the
loop on the last manifold on the right side of the implement.
Repeat steps 4 & 5 for Loop 2 if needed.
