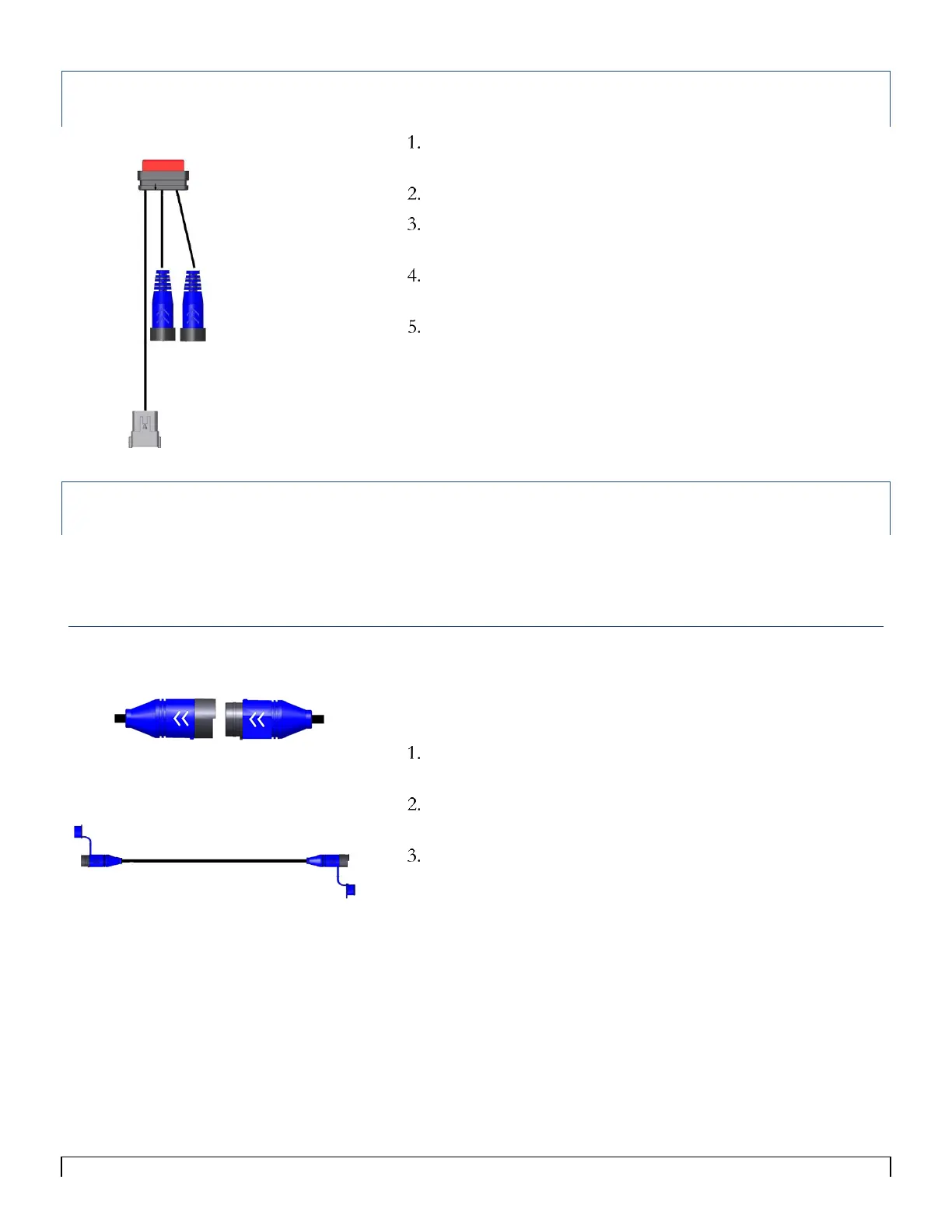

Legend S.A. Sure Seal Harness Installation (Over 60 Sensors per
Loop)
Select a mounting location for the Legend S.A. Harness in
the center of the implement.
Connect the 35 pin black Ampseal connector to the ECU.
Connect the 12 pin Deutsch connector to the Legend No
Section Alarm Harness (AGD1725).
Connect the Loop 1 Sure Seal connector to the Loop 1 Y-
Cable using Main Extension cables as needed.
Repeat step 4 for Loop 2 if needed.
Main Extension Cable & Y-Cable Installation (Over 60 Sensors per
Loop)
For the following installation procedures refer to the Installation
Diagram Figure 4-13.
Main Extension Cables
When making Extension Cable connections, align the molded
arrows. If they are difficult to push together, check the condition of
the pins. For each Loop (1 for Single; 2 for Dual):
Connect the cable from the ECU to a 10ft or 20ft Main
Extension Cable.
Route the Main Harness Extension Cable down the center
of the implement hitch
Secure the Main Harness Extension Cable to the equipment
with cable ties, allowing enough slack for hitch movement
Figure 4-7
Monitor head female Extension Cable male
Figure 4-8
Figure 4-9
