Section Aware Mode
The Legend Section Aware allows no blockage alarms when a
section is disabled.. When a section is disabled the sensors on
that section will turn purple. If the loop is operating normally the

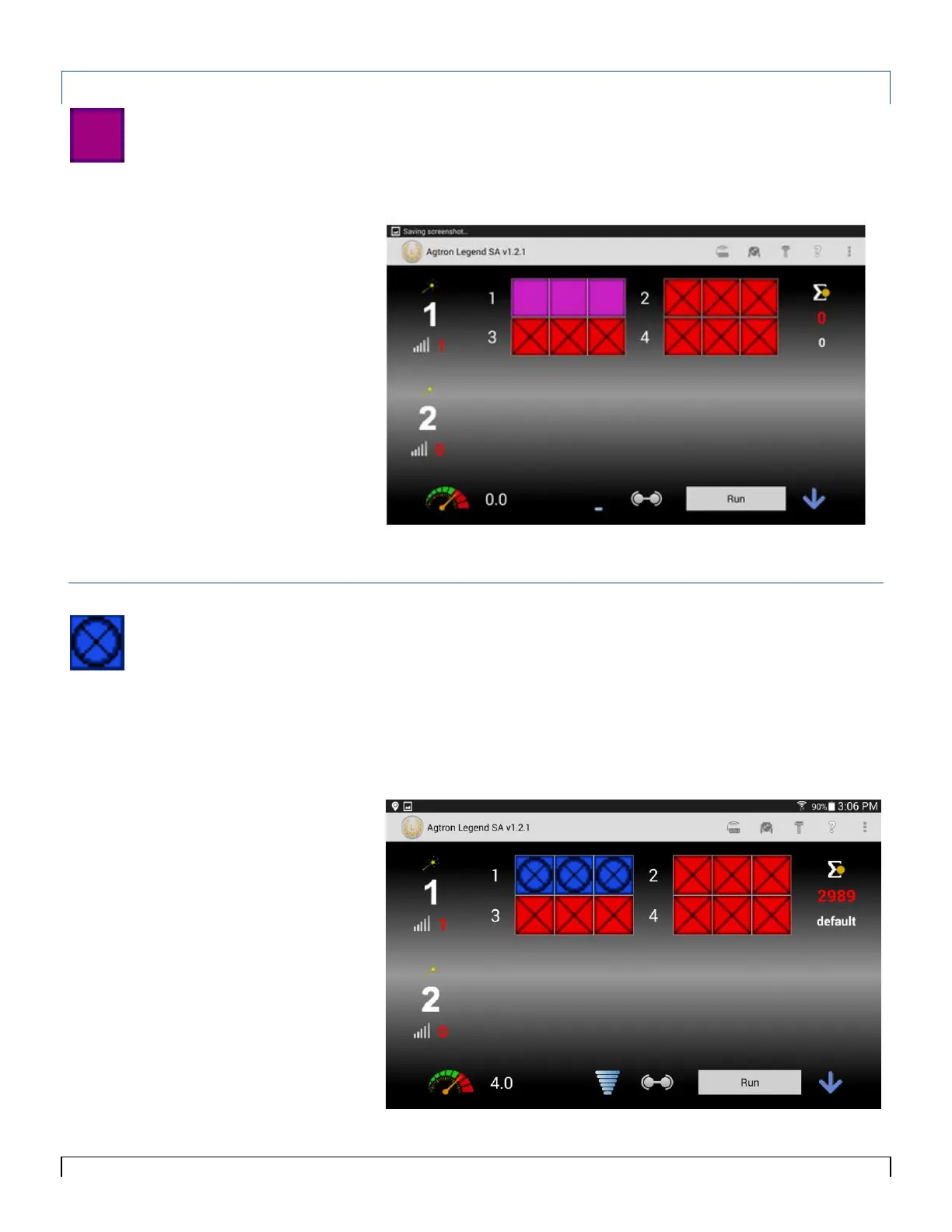

sensors will be green or purple. Figure 6-7 shows 4 sections with
3 sensors per section.
Section Turned Off With Sensor Detecting Seed
When the section is turned off there should be no seed flowing
through the sensors on the section that has been turned off. If there
is any sensor detecting seed when the section is turned off the
sensor(s) will display blue.
Figure 6-8 is showing section one is turned off but the sensors are
still detecting seed.
