AGTRON Legend - Figure 4-12 Seed Sensor Installation Diagram - Bourgault

MND172201 P a g e | 16 Software Revision 1.4.1

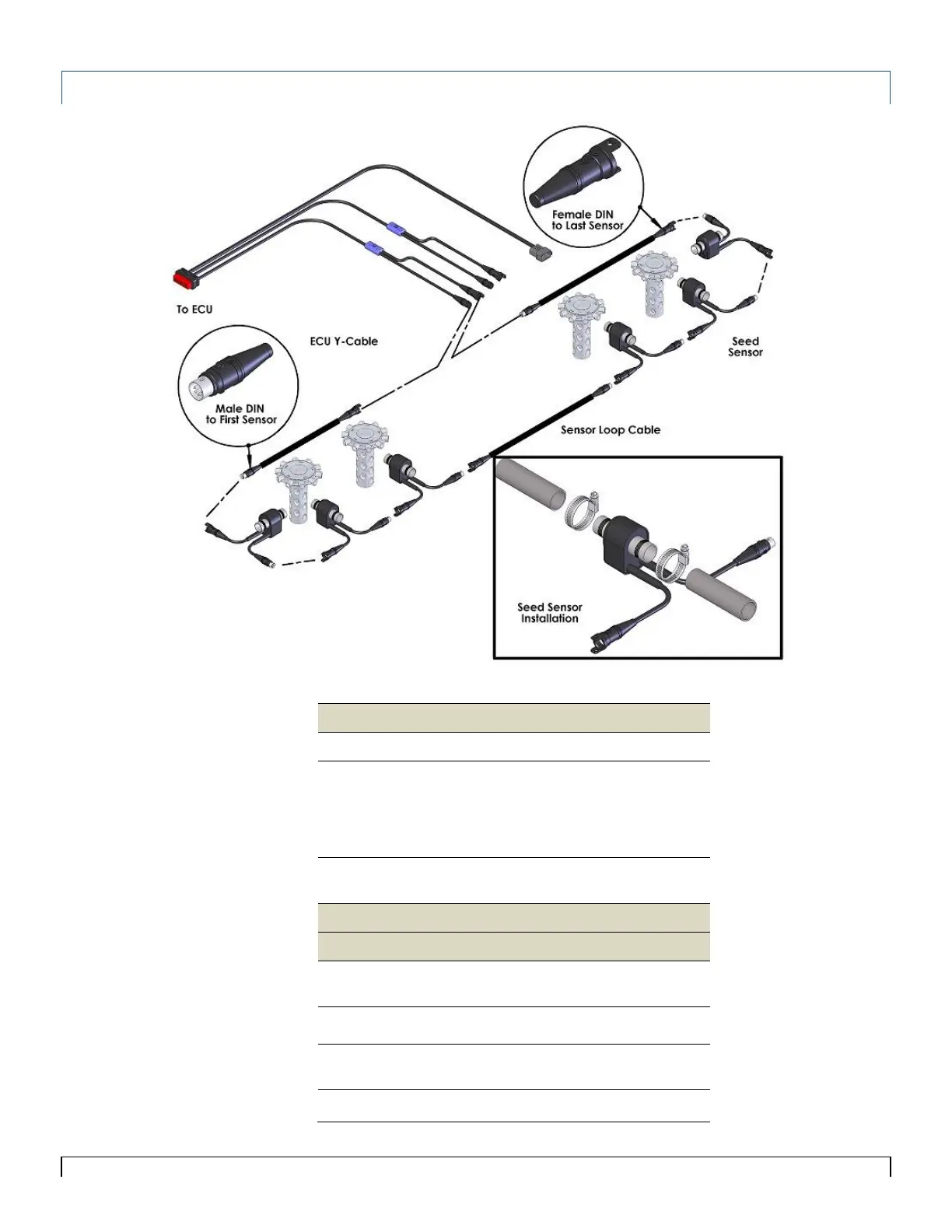

Figure 4-12 Seed Sensor Installation Diagram - Bourgault
Part Number
Description
AGD1719
Legend S.A. Loop Harness
AGST22E
AGST24E
AGST25E
AGST32E
AGST38E
The Legend Seed Sensor 7/8” (22mm)
The Legend Seed Sensor 15/16” (24mm)
The Legend Seed Sensor 1” (25mm)
The Legend Seed Sensor 1 ¼” (32mm)
The Legend Seed Sensor 1 ½” (38mm)
9ASTX10
9ASTX20
The Legend Loop Cable 10ft (3m)
The Legend Loop Cable 20ft (6m)
Optional Parts
Part Number
Description
9ASTX02
9ASTX04
The Legend Loop Cable 2ft (0.6m)
The Legend Loop Cable 4ft (1m)
400TRHS16
Hose clamp size 16
9ARTM10
9ARTM20
Main Extension Cable 10ft (3m)
Main Extension Cable 20ft (6m)
AGD1720
The Legend S.A. 40ft Extension
Diagram is not to scale
Figure 4-12
