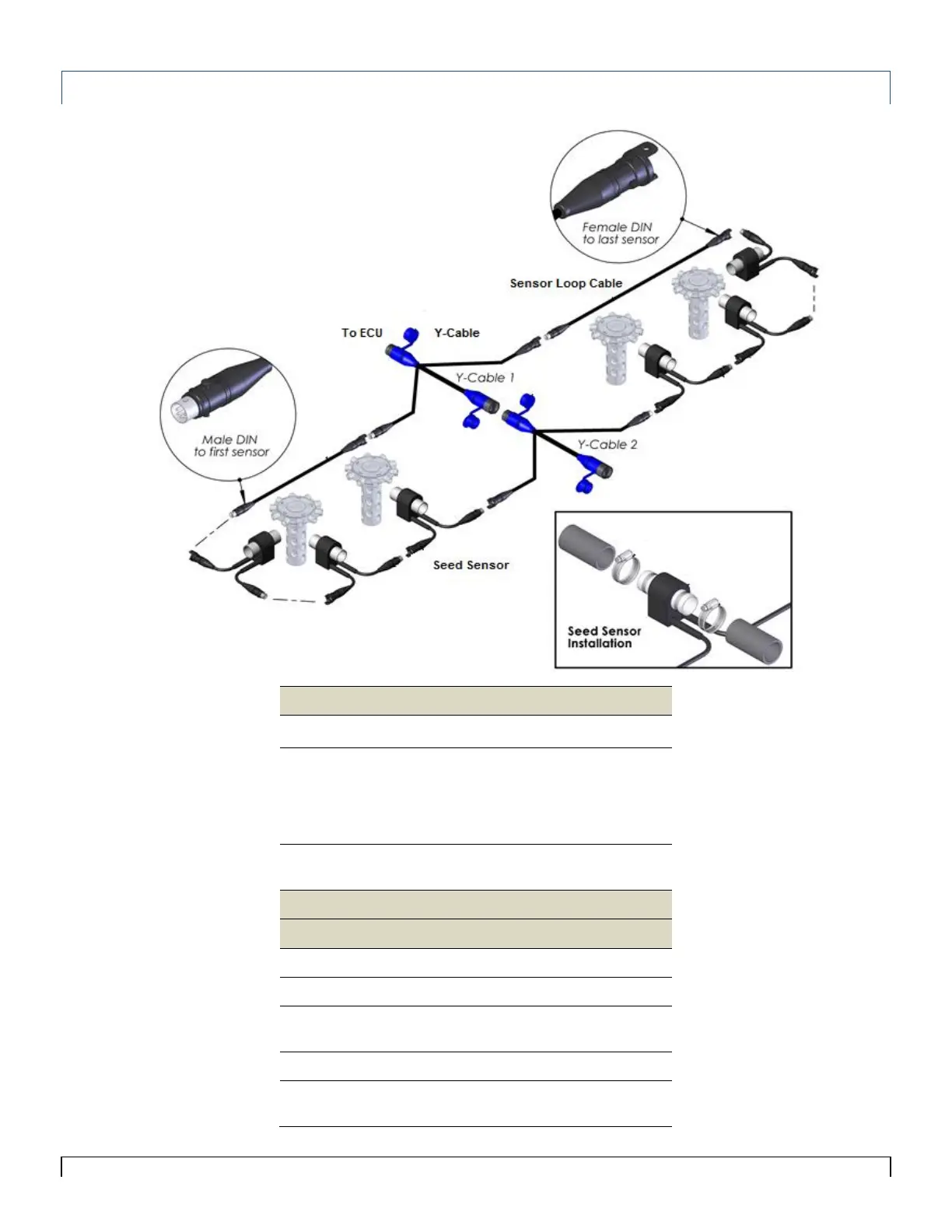

Figure 4-13 Seed Sensor Installation Diagram – Morris/John Deere
Part Number
Description
AGD1726
The Legend S.A. Sure Seal Harness
AGST22E
AGST24E
AGST25E
AGST32E
AGST38E
The Legend Seed Sensor 7/8” (22mm)
The Legend Seed Sensor 15/16” (24mm)
The Legend Seed Sensor 1” (25mm)
The Legend Seed Sensor 1 ¼” (32mm)
The Legend Seed Sensor 1 ½” (38mm)
9ASTX10
9ASTX20
The Legend Loop Cable 10ft (3m)
The Legend Loop Cable 20ft (6m)
Optional Parts
Part Number
Description
AGD1720
The Legend S.A. 40ft Extension
9ASTY10
The Legend Y-Cable 10ft (3m)
9ASTX02
9ASTX04
The Legend Loop Cable 2ft (0.6m)
The Legend Loop Cable 4ft (1m)
400TRHS16
Hose clamp size 16
9ARTM10
9ARTM20
Main Extension Cable 10ft (3m)
Main Extension Cable 20ft (6m)
Diagram is not to scale
Figure 4-13
2
nd
Y-Cable only needed if
Loop has more than 60 seed
sensors
