ECU Diagnostics Screen
The ECU Diagnostics Screen provides information about the ECU.
Tap the ECU Diagnostics icon.
The ECU Diagnostics screen appears.

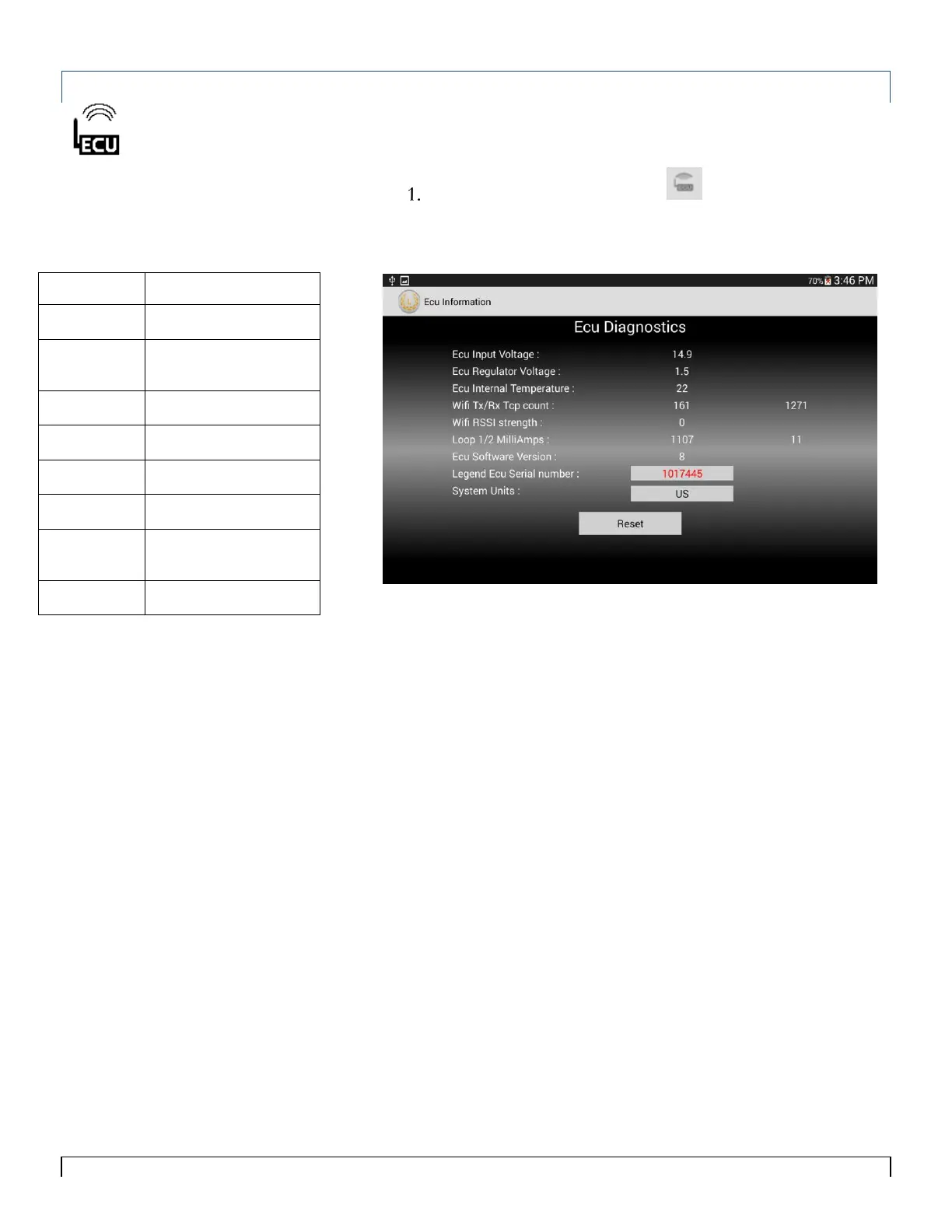

Figure 7-4
Tapping the Reset Button will reset the Wi-Fi Transmit and
Receive (Tx/Rx) TCP count.
Name
Indicates
ECU Input
Voltage
Voltage of the ECU
ECU
Regulator
Voltage
Regulator Voltage of ECU
ECU Internal
Temperature
Internal Temperature of
the ECU
Wifi Tx/Rx
Tcp Count
Number of Wifi messages
transmitted and received
Wifi RSSI
Strength
Wifi Signal Strength in
percent
Loop 1/2
MilliAmps
Loop Current in milliamps
Legend ECU
Serial
Number
Enter Serial Number of
ECU
System Units
Toggle between US &
Metric units
