7. Diagnostics
The Legend has Diagnostic screens to aid in using the system and to
help troubleshoot. They are:
 Sensor Diagnostic Screen
 Loop 1 & Loop 2 History Screen
 ECU Diagnostics Screen
 Message Lists

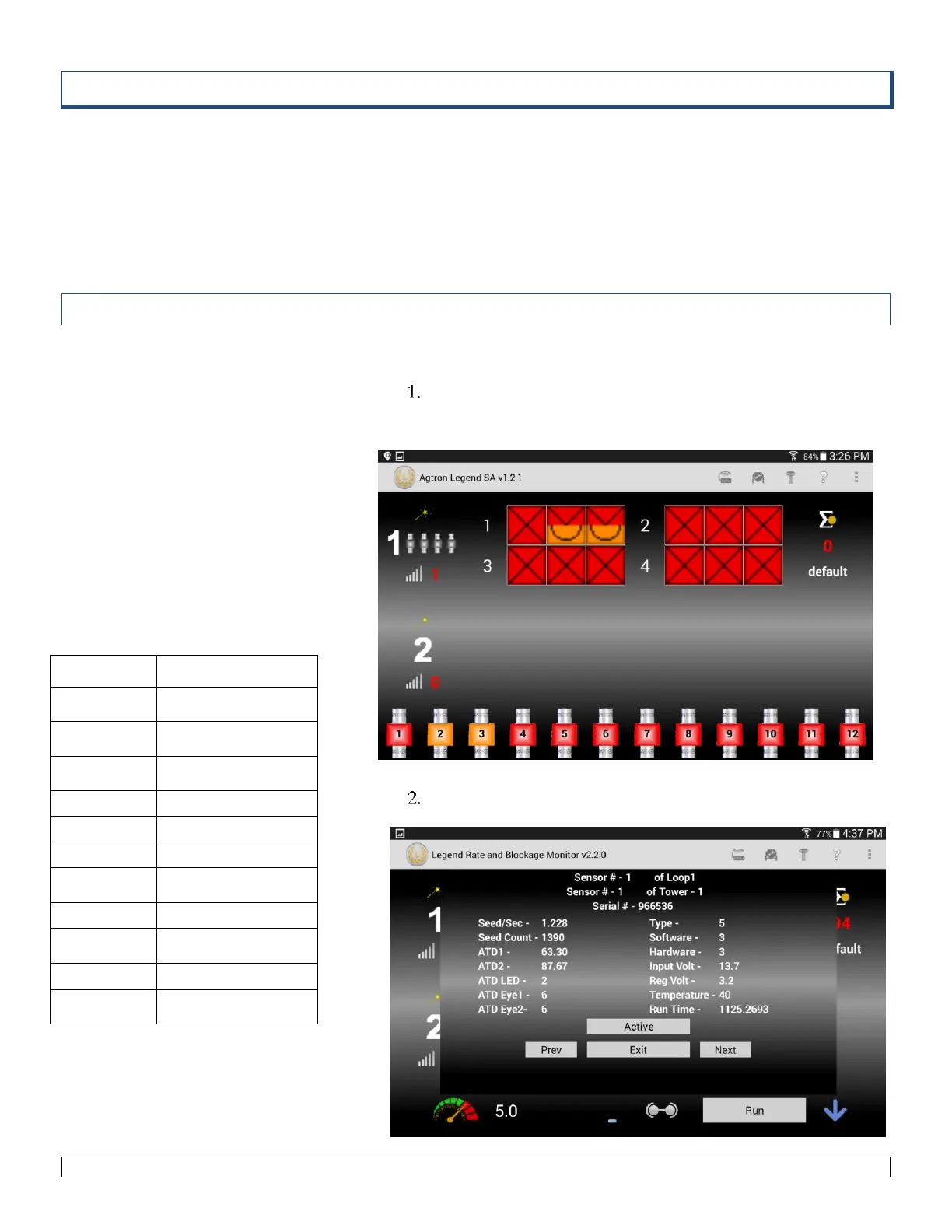

Sensor Diagnostics Screen
The Sensor Diagnostic screen provides status information on all
sensors in each loop.
Tap anywhere on loop 1 or loop 2 to display Sensor Status at
the bottom of the screen. (Provides access to sensor
diagnostic screen)
Tap any sensor icon that you want more detailed information
about.
Name
Indicates
Seed/Sec
Amount of seeds per
second
Seed Count
Amount of seed the
sensors is counting
ATD1/2
Eye Strengths of the
sensor
ATD LED
LED Calibration
ATD Eye1/2
Eye calibration
Type
Sensor Type
Software/
Hardware
Software/Hardware of
the Sensor
Input Volt
Sensor Input Voltage
Reg Volt
Sensor Regulator
Voltage
Temperature
Temperature of sensor
Run Time
Time sensor has ran in
seconds
Figure 7-1
Figure 7-2
