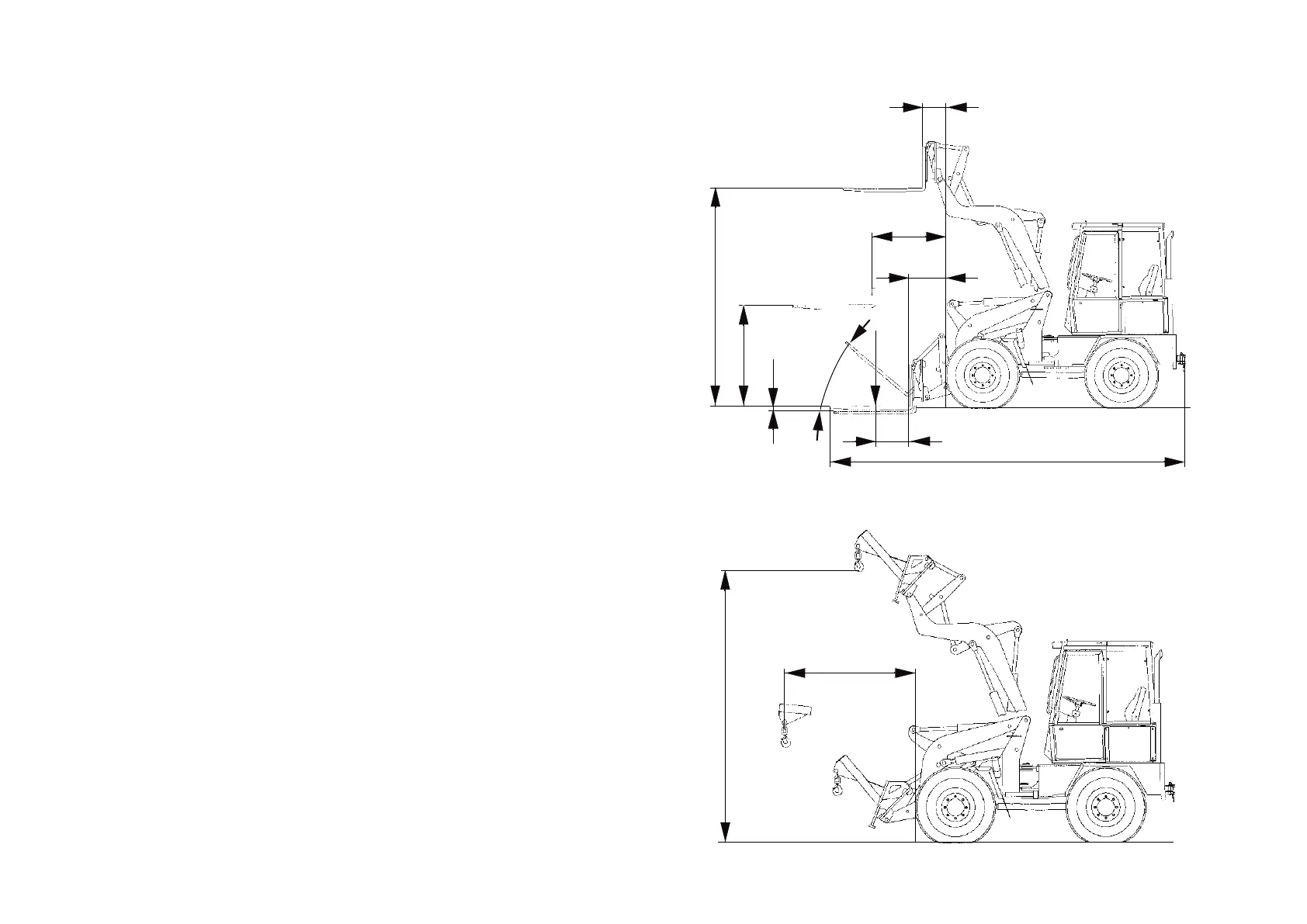

3.17.2 Staplervorsatz/Palettiseur/Fork-lift attachment
F
B
C
D
G
H
E
N
L
A
B
3.17.3 Lasthaken/Crochet de grue/Lifting hook
A
3.17.1 Buckets
Bucket type Standard Multi-purpose
bucket bucket
Bucket volume m³ 0,70 0,60
Bucket width mm 1800 1800
Bulk density t/m³ 1,8 1,8
Uitkiep last
- front kN 34,0 32,6
- swiveled kN 30,0 28,6
Tear-out force acc. to
DIN ISO 8313 kN 39 37
Weight kg 250 410
A Total length mm 4490 4490
B Max. dumping width at
dump angle 45° front mm 1170 1200
C Dump angle 45° 45°
max. dump angle 55° 55°
D Dumping width at max.
lifting height and
dump angle 45° mm 460 480
E Depth of feed-in mm 90 80
F Dumping height at max.
dumping width and
dump angle 45° mm 900 880
G Dumping height at max.
lifting height and
dump angle 45° mm 2530 2510
H Free lift height mm 2820 2820
Multi-purpose bucket opened:
Dumping width at max.
dumping width and
dump angle 0° mm 340
Dumping height at max.
dumping width and
dump angle 0° mm 3010
