2. DynamicTest(EN280;6.1.4.2.2)
(1) (2) (3)
(4) (5) (6)
Akerbwithaheightof
0.1mperpendicular
M09YU321

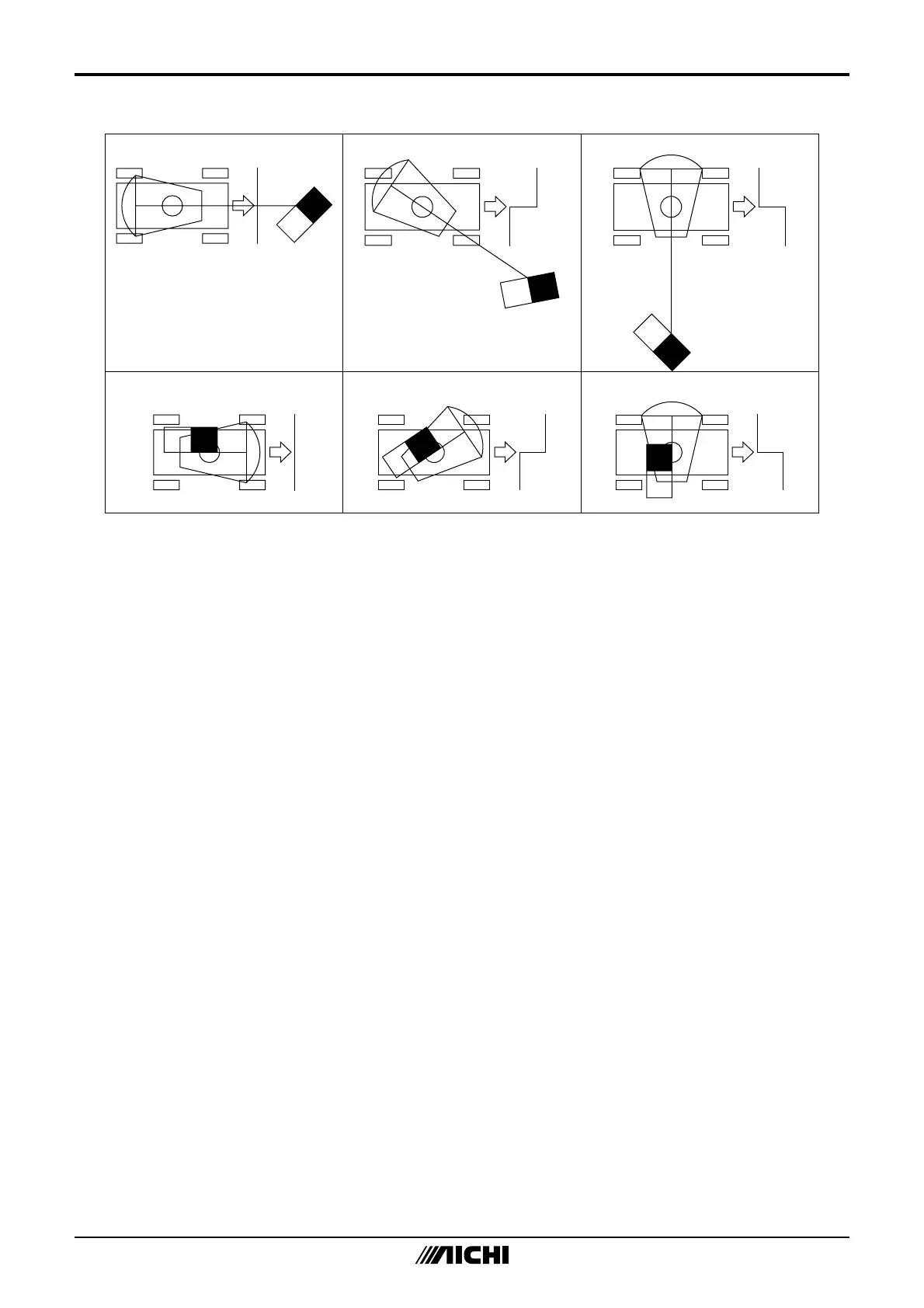

Fig.14‒2
(1) Bothleadingwheelsintothedepression
(2) Oneleadingwheelintothedepression
(3) Oneleadingwheelintothedepression
(4) Bothleadingwheelsintothedepression
(5) Oneleadingwheelintothedepression
(6) Oneleadingwheelintothedepression
2‒1 SP14DJ
Result:testpassed
(nominalload:270kg/50%ofplatform;oscillationaxle:5;drivespeed:1.2km/h;0.333m/s)
󱒦󱓕󱓕󱓊󱓓󱓉󱓎󱓝󱒅󱒦󱒅󱒒󱒅󱒹󱓊󱓘󱓙󱒅󱒷󱓊󱓕󱓔󱓗󱓙
