AIMIX MD-16E - Chapter 2 Detailed Description of MD-16 E

- 11 -
UG-MD16E-EN (V1.3-190708)
MD-16E
Mixer Reference manual
Chapter 2 Detailed Description of
MD-16E
This section details the screen and operational controls of the MD-16E Digital Mixer. The operation of
this tuning station basically consists of input channel setting, bus output channel and routing settings, effect
settings, and system settings.

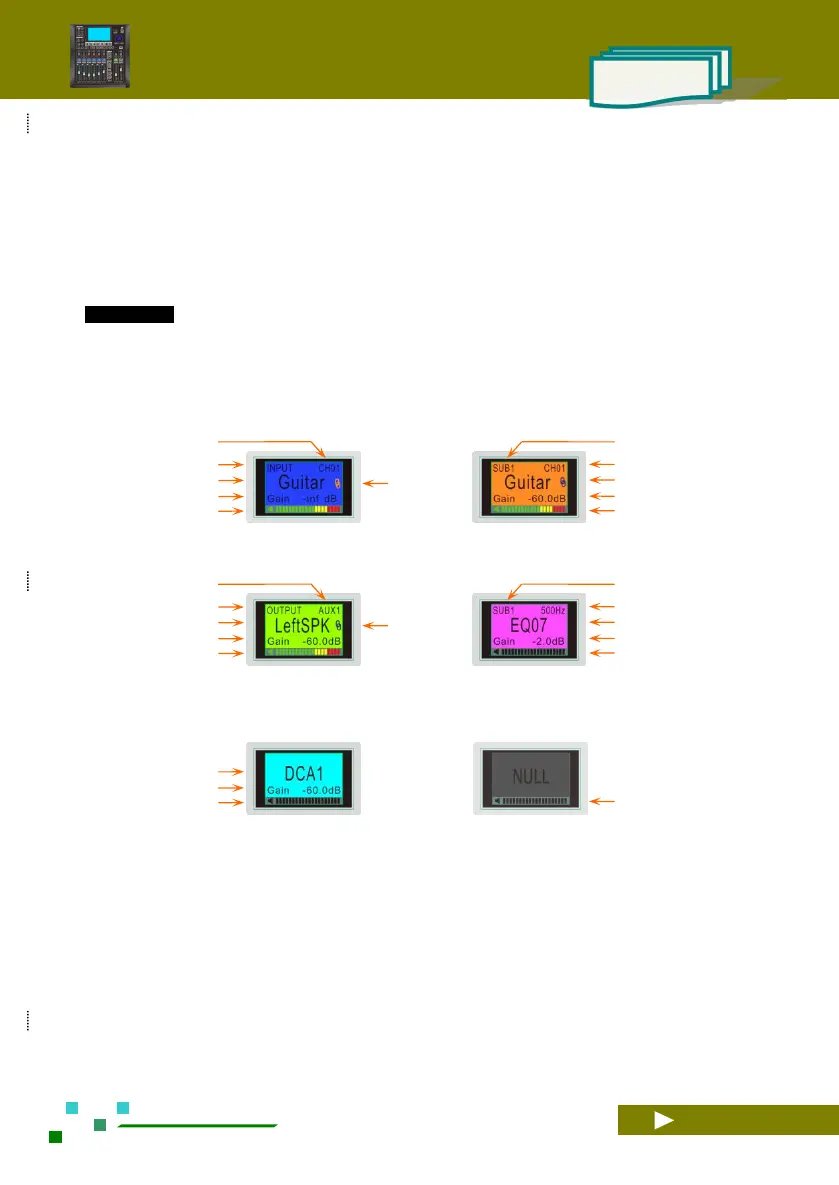

Key points: The faders and buttons on the panel are mainly used during operation, and the TFT touch
screen is supplemented by two-way synchronous control. What is the function of the fader can be distinguished
by the corresponding OLED guidance display. Channels that are prohibited from operating display a black
screen.
Status: input channels
Gain: -Inf ~ +10dB
Channel name: user define
Input level: pre fader
Channel No: CH01~CH12
Channel
link
Input ch：CH01~CH12 etc
Gain: -Inf ~ +10dB
Channel name: user define
Input level: pre fader
BUS No
：
AUX1~SUB4 etc
Input channel
Routing channel
DCA gain: -Inf ~ +10dB
Channel name：DCA1~DCA6
Level: invalid
DCA channel
Disabled channel
Level: invalid
Status: output channels
Gain: -Inf ~ +10dB
Channel name: user define
Output level: post fader
BUSES: AUX1~SUB4
Channel
link
Freq. point: filter center freq.
Filter gain: -15dB ~ +15dB
Band number: EQ01~ EQ18
Level: invalid
BUS No：AUX1~SUB4 etc
Output channel
QEQ of bus
