AIMIX MD-16E - Introduction of Rear Panel Functions

-
6
-
UG-MD16E-EN (V1.3-190708)
MD-16E
Mixer Reference manual

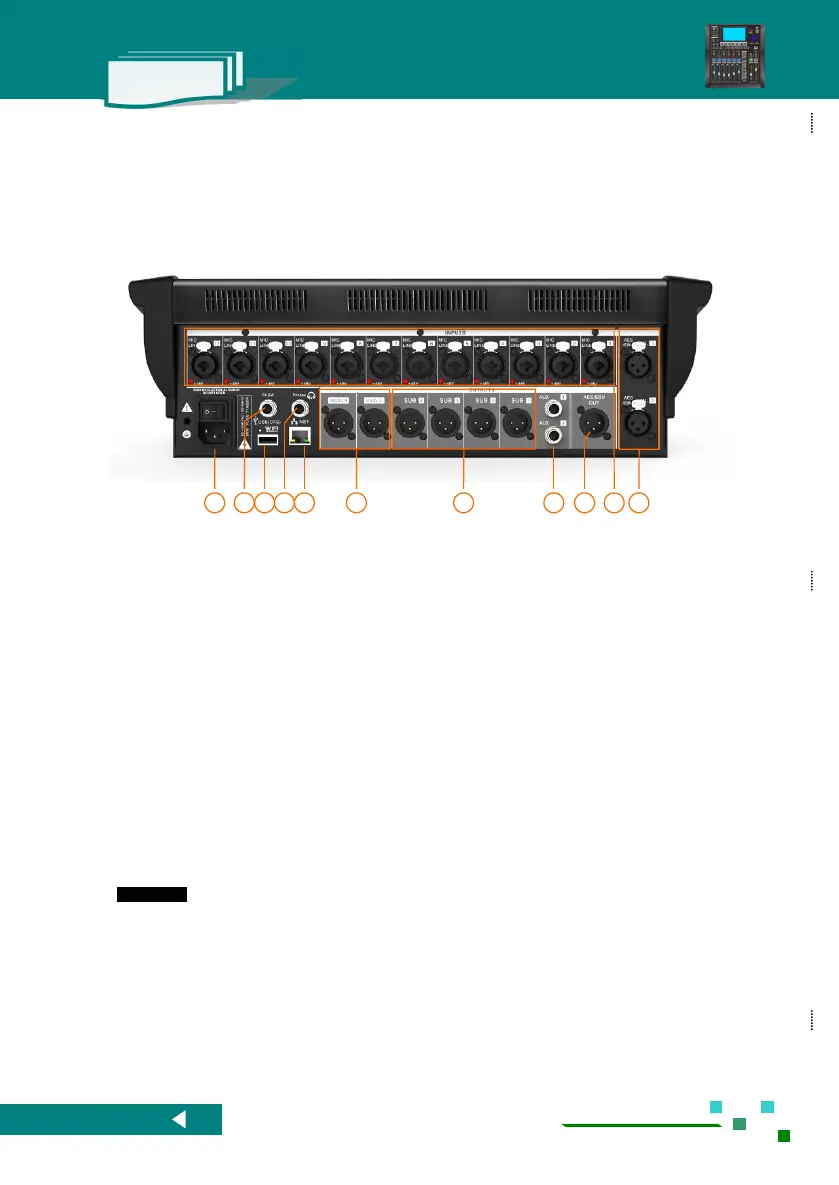

1.2.3. Introduction of rear panel functions
01
Two AES digital audio input connectors. Both are
stereo dual-channel inputs, and the clock frequency
is adaptively and automatically converted.
02
12-channel MIC / Line differential balanced input
(XLR female plug and 1⁄4" TRS combined input),
independent 48V phantom power control.
03
One AES digital audio stereo dual channel output
interface, 24bit/48kHz.
04
Bus AUX1~AUX2 output, Mono, differential
balanced output, 1⁄4" TRS interface.
05
Bus SUB1~SUB4 output, Mono, differential
balanced output, XLR male interface.
06
Bus Main L/R output, Mono, differential
balanced output, XLR male interface.
07
Internet connection, can work with IP ( currently
not open ).
08
Headphone monitor output interface.
09
USB dock，can connect WIFI adapter, BT adapter
and USB stick.
NOTE: BT and USB can`t work at same time.
10
Foot switch input interface ( Currently not open ).
11
AC power input interface and power switch.
Warning: Be sure to use a three-pin plug, socket and cable with protective grounding. The safety ground must be
reliable !! To ensure the safety of people and equipment, and to avoid equipment interference and work unstable or
damaged.
05
01
04
06
09
10
08
11
07
03
02
