Airo X Series - Safety Lock for Maintenance Operations

Use and Maintenance Manual – Series X – XS E RESTYLING
Page 67
7.1 Safety lock for maintenance operations
Before carrying out any maintenance or repairs to it,
activate the lifting structure locking system.
Watch the pictures aside to understand how the lifting
locking structure works before carrying out any
maintenance or repairs to it.
▪ Unscrew knobs B completely (on both sides of
the lifting structure).
▪ Rotate safety bars A by setting them in vertical
position.
▪ Lower the structure until it rests on bars A firmly.
▪ Check the correct positioning of bars A.

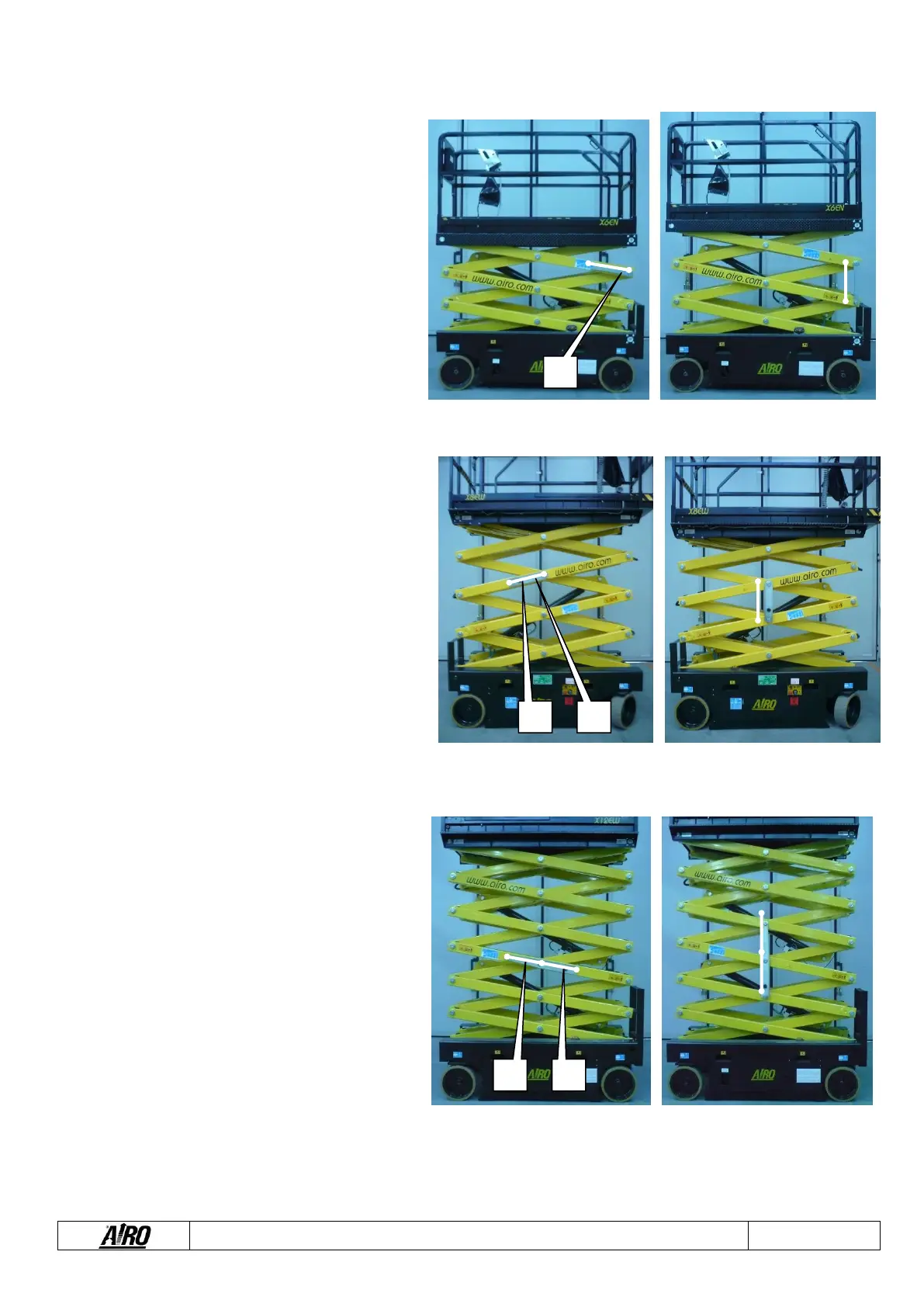

7-1: Scissors locking X8 EN, XS7 E RESTYLING
7-2: Scissors locking X10 EN, X10 EW, X10 EW-WIND,
XS8 E RESTYLING LIGHT, XS8 E RESTYLING
7-3: Scissors locking X12 EN, X12 EW, X12 EW-WIND, X14 EW, X16 EW,
XS9 E RESTYLING
A
B
A
A
B
