Use and Maintenance Manual – Series X – XS E RESTYLING
7.3.10 Overload controller by-pass
In case of fault and impossibility to calibrate the device, a by-pass
of the system is possible in the following way (FIGURE 7-11):
▪ Locate connector A inside the control unit box.
▪ Detach the connection by removing the lead seal.
▪ Locate connector B (by-pass), usually fixed to connector A
by means of clamp.
▪ Introduce connector B instead of connector A.
▪ Once this operation has been completed, the machine is
without overload controller.

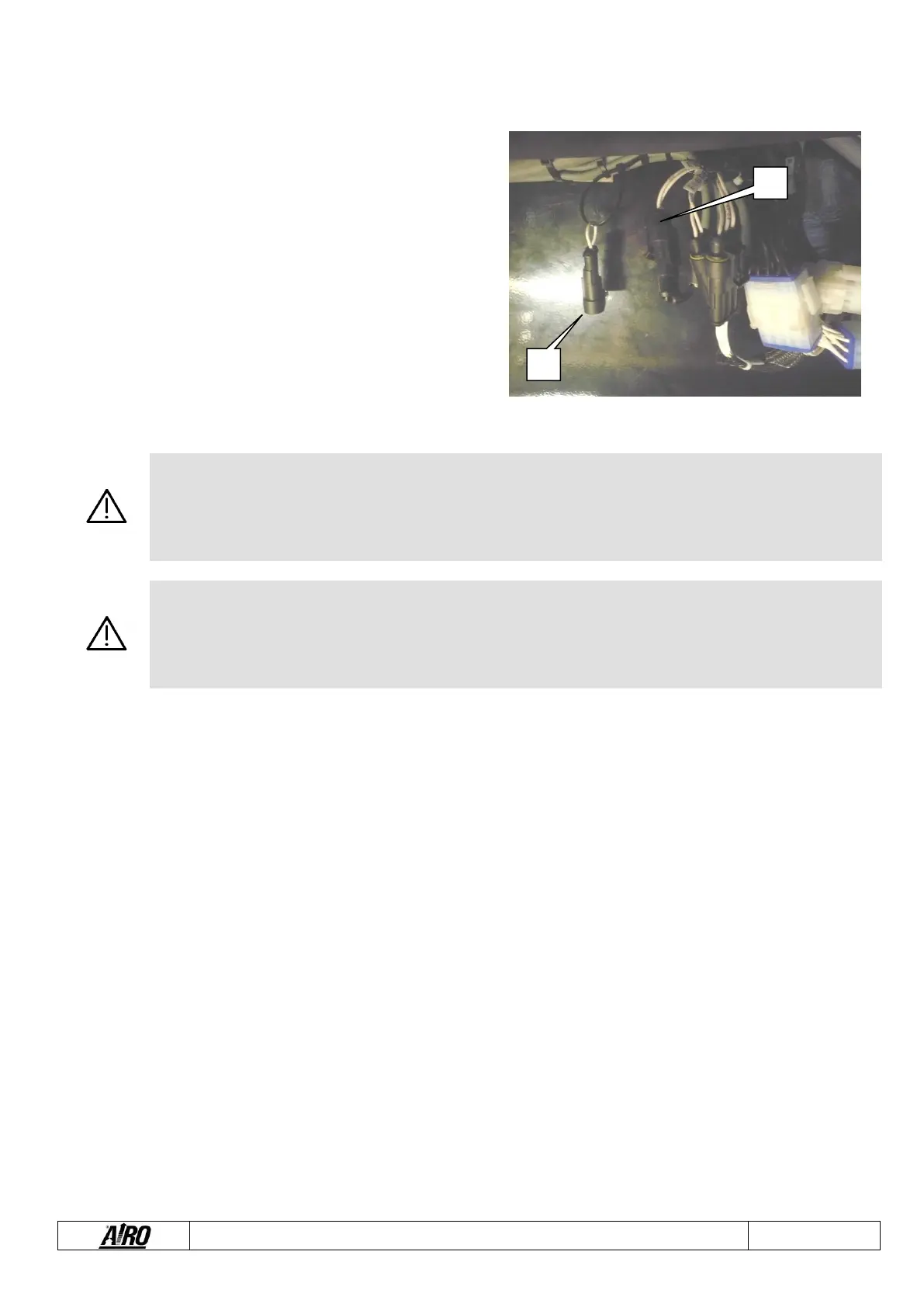

7-11: Overload controller by-pass
WARNING!
THIS OPERATION IS ALLOWED ONLY FOR EMERGENCY HANDLING OF THE MACHINE OR IN THE EVENT
OF A FAULT OR IMPOSSIBILITY TO CALIBRATE THE SYSTEM.
DO NOT USE THE MACHINE IF THE OVERLOAD CONTROLLER IS NOT EFFICIENT.
WARNING!
ONCE THE EMERGENCY IS OVER, RESET THE CORRECT CONNECTION OF THE CONNECTOR “A” AND
FIT THE LEAD SEAL BACK ON. BECAUSE OF ITS IMPORTANCE, THE OPERATION MUST ONLY BE
PERFORMED BY SKILLED TECHNICAL PERSONNEL.
