• Control by occupancy: When the occupancy sensor connected to the module indicates that the zone is unoccupied,
the system waits for 5 minutes to confirm it is actually empty. After this period of time, the zone is set to Timer Mode
and it turns off after 90 minutes.
• Control by open window: When the open window sensor connected to the module indicates that a window is open
for more than 60 seconds, the control element (actuator/relay) associated with that module closes.
The activation and configuration of these inputs are available in the zone settings menu of the thermostat (See
Advanced
Settings
).
Flow regulation
The intelligent motorized dampers include a control system that allows to manually set the maximum and minimum opening
of each damper.

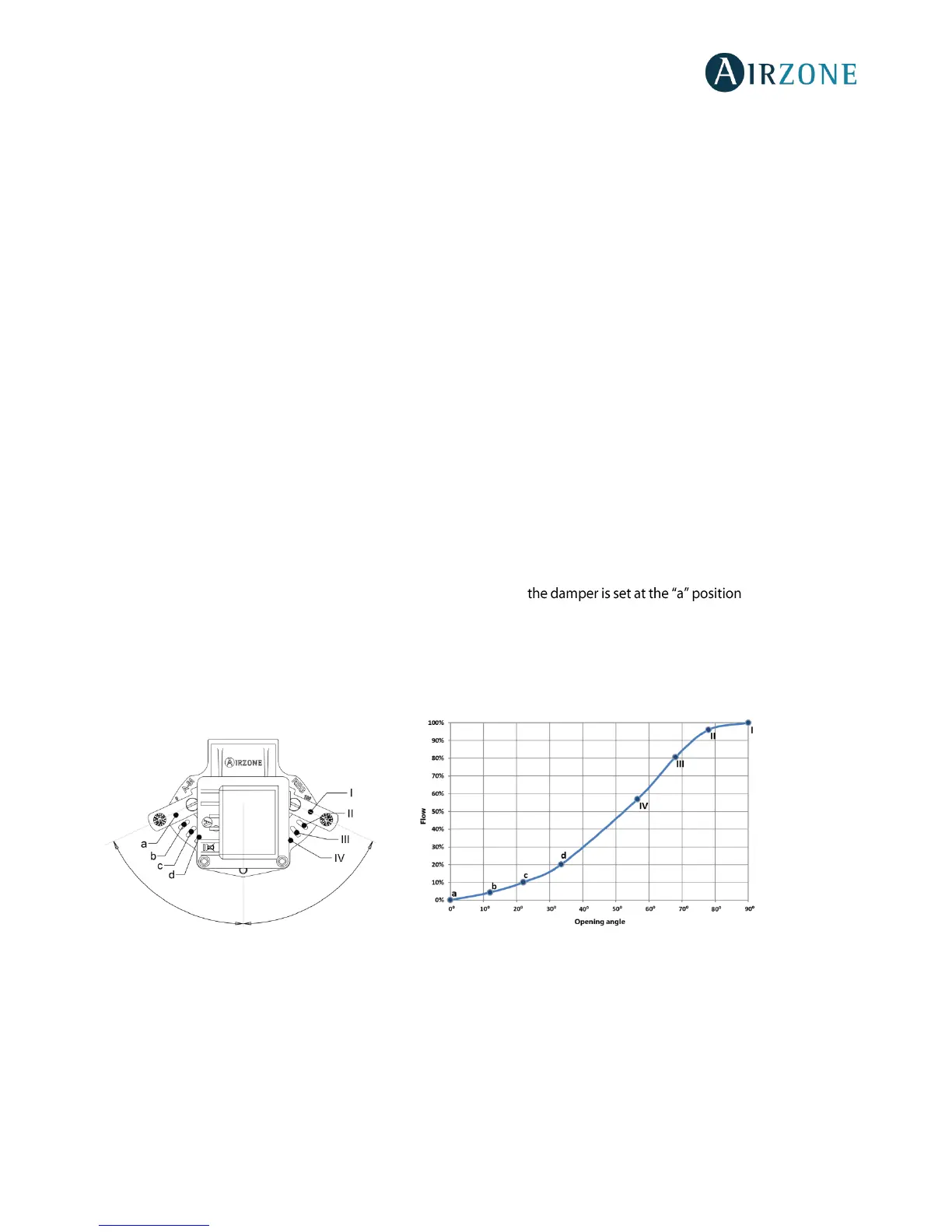

Flow adjustment (REG)
The damper offers a maximum opening adjustment which balances the airflow of each damper based on the real needs of the
installation. By default, the damper is set at the I position. To adjust it, follow the steps:
1. Turn on and generate demand in all zones to open all the dampers.
2. Turn off the zone/damper to be adjusted.
3. Adjust the maximum opening you want with the REG lever (I/II/III/IV).
4. Turn on the zone and check the flow is correct.
Minimum Air Setting (A-M)
The damper enables the adjustment of a minimum opening. By default, . To adjust it, follow
the steps:
1. Turn on and generate demand in all zones to open all the dampers.
2. Adjust the minimum opening you want with the M-A lever (a/b/c/d).
3. Turn on the zone and check the minimum air flow is correct.
