Airzone AZVAFR Series User Manual

7

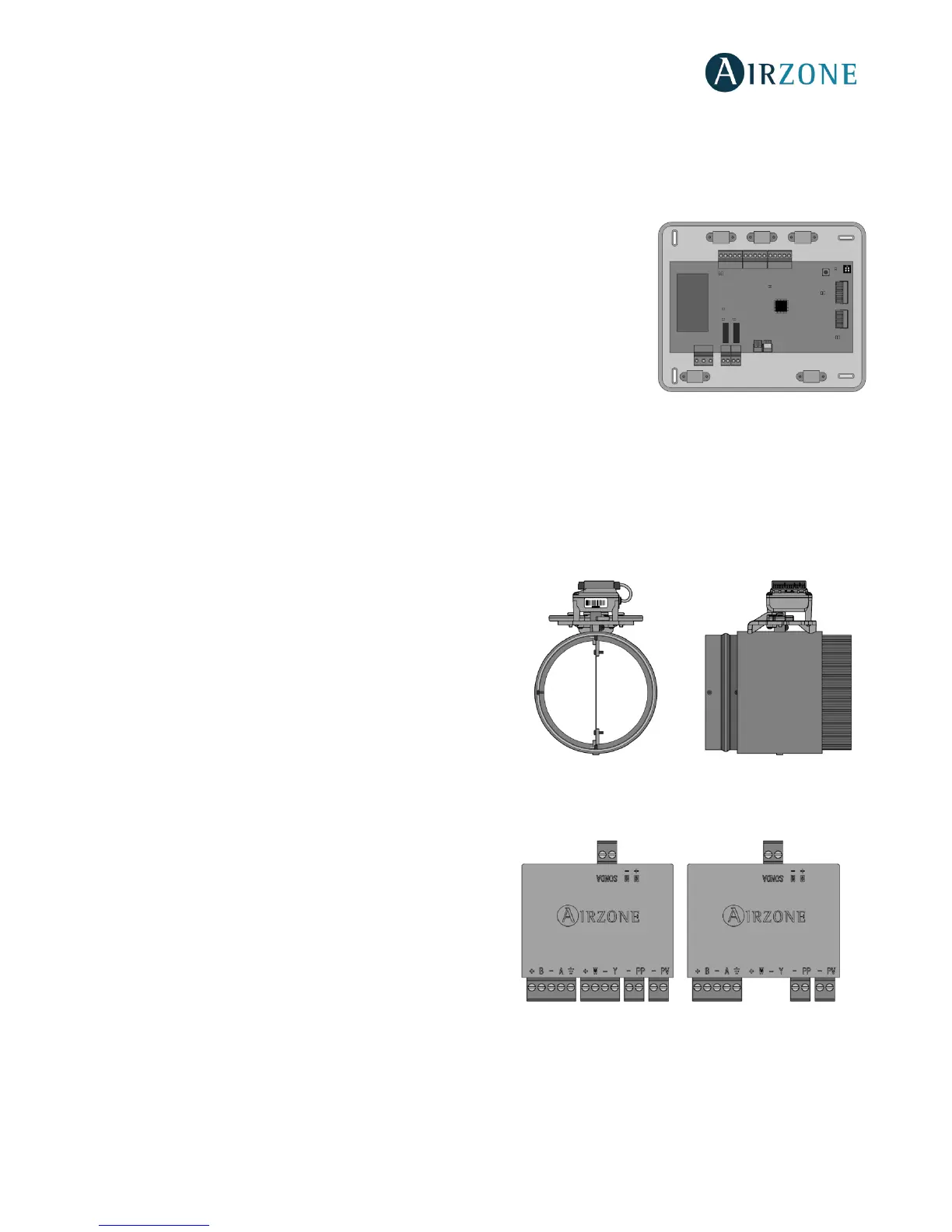

SYSTEM ELEMENTS
CONTROL BOARD (AZVAFRXXXX)
Electronic board with a communication gateway (see section Communication Gateway AZVAFGTxxx for more information),
which manages all wired and wireless devices in the system. Externally powered at 110 / 230 VAC. Wall mounted.
Functionalities:
• Controls the status of the thermostats (up to 10 zones).
• Controls the proportionality and the minimum air supply of the dampers.
• Control of auxiliary heat (up to two stages).
• Control gateway management.
• Communication with units of integral control of the installation.
• Communications with other external control systems through integration bus.
WIRED/WIRELESS INTELLIGENT ROUND DAMPER (AZVAFDAMPERXX [C/R])
Damper with actuator
Damper with actuator of 6, 8, 10, 12 or 14 inch diameter. Powered with 12 VDC by the zone module.
Zone module
Local control module for controlling damper. Wired/wireless
communication with zone thermostat. Powered through system
Airzone connection bus.
Functionalities:
• Input for detection of open windows.
• Input for detection of presence.
• Probe input.
• Remote probe function and distributed probe function.
WIRED/WIRELESS ONLY RADIANT ZONE MODULE (AZVAFZMRAD [C/R])
Local control module for controlling radiant elements.
Wired/wireless communication with zone thermostat. Powered
through system Airzone connection bus.
Functionalities:
• Input for detection of open windows.
• Input for detection of presence.
• Probe input.
• Remote probe function and distributed probe function.
AZVAFZMRADC AZVAFZMRADR
